Infineon recommends following the PCB layout guidelines provided in the application note AN201908-01, which includes recommendations for decoupling, signal routing, and power supply design to ensure optimal performance and minimize noise.
Infineon recommends using thermal interface materials (TIMs) and heat sinks to manage thermal dissipation. The device's thermal resistance (RθJA) is specified in the datasheet, and designers should ensure that the system's thermal design meets the recommended specifications to prevent overheating.
The CY621472E30LL-45ZSXI has built-in ESD protection diodes, but designers should still follow proper ESD handling and storage procedures to prevent damage. Additionally, latch-up prevention can be achieved by following the recommended operating conditions, avoiding excessive voltage or current, and using proper PCB design and layout techniques.
The CY621472E30LL-45ZSXI is not specifically designed for radiation-intensive environments. If radiation hardness is required, designers should consider using radiation-hardened components or consult with Infineon's application engineers for guidance on using this device in such environments.
The CY621472E30LL-45ZSXI has undergone various reliability and qualification tests, including temperature cycling, humidity testing, and electrical stress testing, as per industry standards such as AEC-Q100 and JEDEC. The device is also qualified according to Infineon's internal quality and reliability standards.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CY621472E30LL-45ZSXI Overview

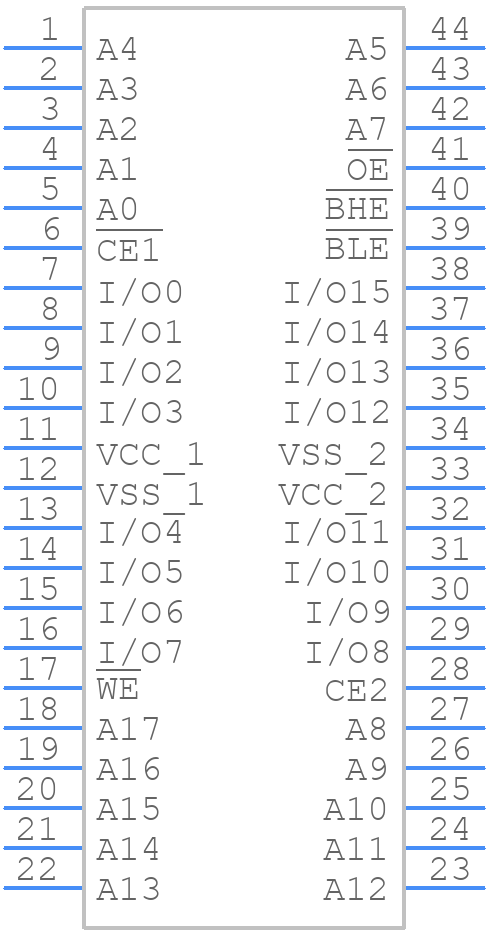

Use the download button to access the CY621472E30LL-45ZSXI schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CY621,
or try a keyword search, such as SRAMs
