CY62148ELL-45ZSXIT - Infineon

CY62148ELL-45ZSXIT Details

• Manufacturer Part Number:

  CY62148ELL-45ZSXIT

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

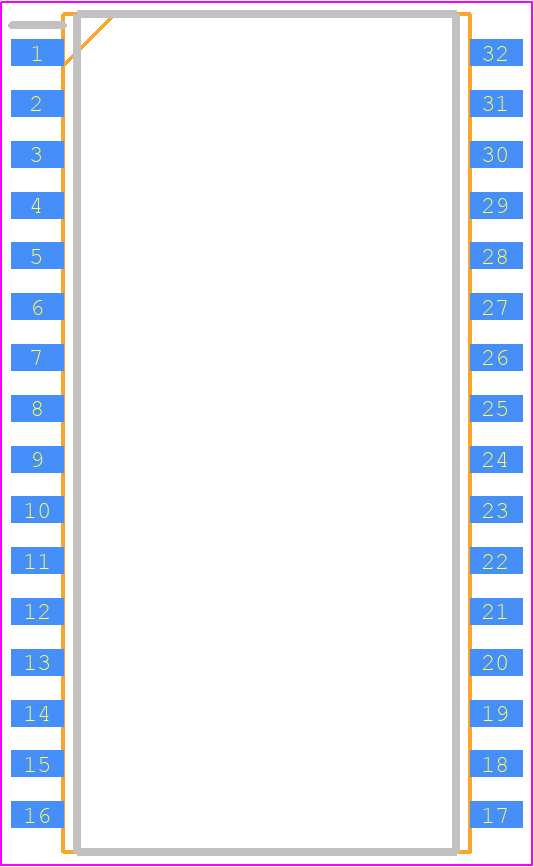

• Package Description:

  20.95 X 11.76 MM, 1 MM HEIGHT, ROHS COMPLIANT, TSOP2-32

• Country Of Origin:

  Mainland China, Taiwan

• ECCN Code:

  3A991.b.2.a

• HTS Code:

  8542.32.00.41

• Factory Lead Time:

  4 Weeks

• Manufacturer:

  Infineon Technologies AG

• YTEOL:

  4

• Access Time-Max:

  45 ns

• I/O Type:

  COMMON

• JESD-30 Code:

  R-PDSO-G32

• JESD-609 Code:

  e3

• Length:

  20.95 mm

• Memory Density:

  4194304 bit

• Memory IC Type:

  STANDARD SRAM

• Memory Width:

  8

• Moisture Sensitivity Level:

  3

• Number of Functions:

  1

• Number of Terminals:

  32

• Number of Words:

  524288 words

• Number of Words Code:

  512000

• Operating Mode:

  ASYNCHRONOUS

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Organization:

  512KX8

• Output Characteristics:

  3-STATE

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  TSOP2

• Package Equivalence Code:

  TSOP32,.46

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, THIN PROFILE

• Parallel/Serial:

  PARALLEL

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  1.2 mm

• Standby Current-Max:

  0.000007 A

• Standby Voltage-Min:

  2 V

• Supply Current-Max:

  0.02 mA

• Supply Voltage-Max (Vsup):

  5.5 V

• Supply Voltage-Min (Vsup):

  4.5 V

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  20

• Width:

  10.16 mm
