For optimal performance, it's recommended to follow Infineon's guidelines for PCB layout and thermal management. This includes using a 4-layer PCB with a solid ground plane, placing decoupling capacitors close to the device, and ensuring good thermal conductivity to dissipate heat.
The CY62158EV30LL-45ZSXI requires a specific power-up and power-down sequencing to ensure proper operation. It's recommended to follow the power-up sequence of VCC, then VIO, and power-down sequence of VIO, then VCC, with a minimum delay of 10 ms between voltage ramps.
To ensure signal integrity and reduce noise, it's recommended to use controlled impedance traces, add series resistors to reduce ringing, and use a solid ground plane to reduce electromagnetic interference (EMI). Additionally, consider using shielding and filtering to minimize external noise.
To implement and test the JTAG interface, follow the IEEE 1149.1 standard and use a JTAG adapter or a development kit provided by Infineon. Ensure that the JTAG clock frequency is within the recommended range, and use a JTAG debugger or programmer to test and verify the interface.
The CY62158EV30LL-45ZSXI has a high reliability rating, with a mean time between failures (MTBF) of >100 years. However, it's essential to consider the overall system design, including component selection, PCB design, and manufacturing processes, to ensure the highest reliability and quality.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CY62158EV30LL-45ZSXI Overview

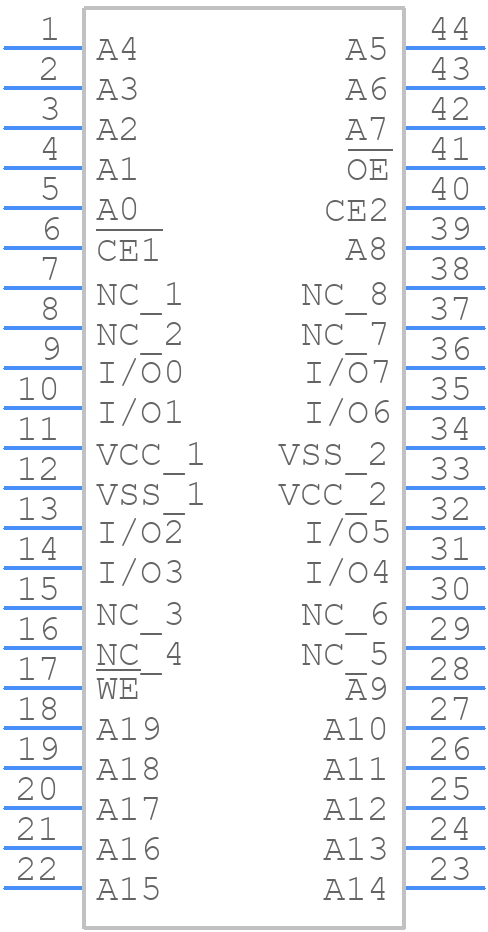

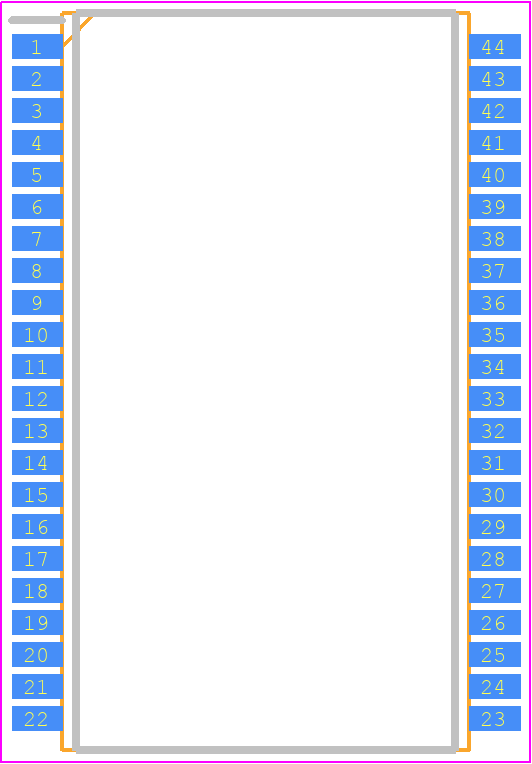

Use the download button to access the CY62158EV30LL-45ZSXI schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CY621,
or try a keyword search, such as SRAMs
