CY62167DV30LL-55BVXI - Infineon

Description: SRAM 16Mb 3V 55ns 1M x 16 LP SRAM

Download CY62167DV30LL-55BVXI Model

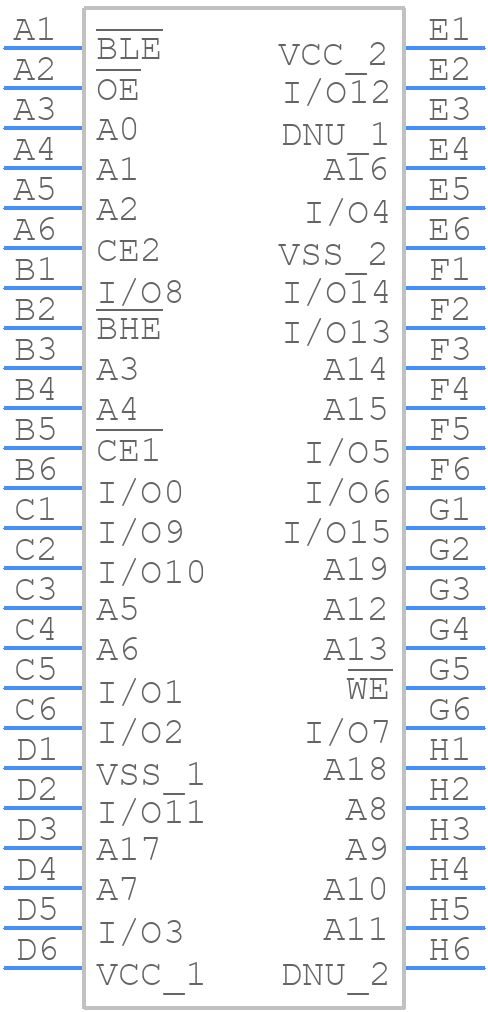

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
CY62167DV30LL-55BVXI - Infineon PCB footprint - BGA - BGA - 48-ball VFBGA (8 × 9.5 × 1 mm) BV48B Package Outline, 51-85178
click to zoom
3D Models
CY62167DV30LL-55BVXI - Infineon  - 3D model - BGA - 48-ball VFBGA (8 × 9.5 × 1 mm) BV48B Package Outline, 51-85178
click to zoom

CY62167DV30LL-55BVXI Details

  • Manufacturer Part Number:

    CY62167DV30LL-55BVXI

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    3A991.b.2.a

  • HTS Code:

    8542.32.00.41

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    8

  • Access Time-Max:

    55 ns

  • I/O Type:

    COMMON

  • JESD-30 Code:

    R-PBGA-B48

  • JESD-609 Code:

    e1

  • Length:

    9.5 mm

  • Memory Density:

    16777216 bit

  • Memory IC Type:

    STANDARD SRAM

  • Memory Width:

    16

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Number of Words:

    1048576 words

  • Number of Words Code:

    1000000

  • Operating Mode:

    ASYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    1MX16

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA48,6X8,30

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Parallel/Serial:

    PARALLEL

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Standby Current-Max:

    0.00001 A

  • Standby Voltage-Min:

    1.5 V

  • Supply Current-Max:

    0.03 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.2 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.75 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    8 mm

CY62167DV30LL-55BVXI Frequently Asked Questions (FAQs)

  • The CY62167DV30LL-55BVXI can operate from -40°C to 85°C.
  • The device has a built-in power-on reset circuit, which initializes the device on power-up. For power-down, it is recommended to disable the chip enable (CE) and output enable (OE) signals before powering down.
  • The CY62167DV30LL-55BVXI supports clock frequencies up to 133 MHz.
  • The device has a built-in voltage detector that resets the device during power failures or brownouts, ensuring data integrity. Additionally, it is recommended to use a capacitor on the VCC pin to filter out noise and ensure a clean power supply.
  • The typical access time for the CY62167DV30LL-55BVXI is 5.5 ns.
