Infineon provides a recommended PCB layout guide in their application note AN201908-01, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
The CY62167ELL-45ZXIT requires a specific power-up and power-down sequencing to prevent latch-up and ensure proper operation. Infineon recommends following the power-up and power-down sequencing guidelines outlined in their application note AN201908-01.
The CY62167ELL-45ZXIT has a high power density, and proper thermal management is crucial to prevent overheating. Infineon recommends using a thermal pad, thermal vias, and a heat sink to dissipate heat effectively. The device's thermal resistance (RθJA) is specified in the datasheet.
A reliable reset circuit is essential to ensure proper device operation. Infineon recommends using a reset circuit with a capacitor and a resistor to filter out noise and ensure a clean reset signal. The reset circuit should be designed to meet the device's reset timing requirements specified in the datasheet.
The CY62167ELL-45ZXIT has built-in ESD protection, but additional external protection measures may be necessary to prevent damage from electrostatic discharge. Infineon recommends following the ESD protection guidelines outlined in their application note AN201908-01, including the use of ESD protection diodes and resistors.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CY62167ELL-45ZXIT Overview

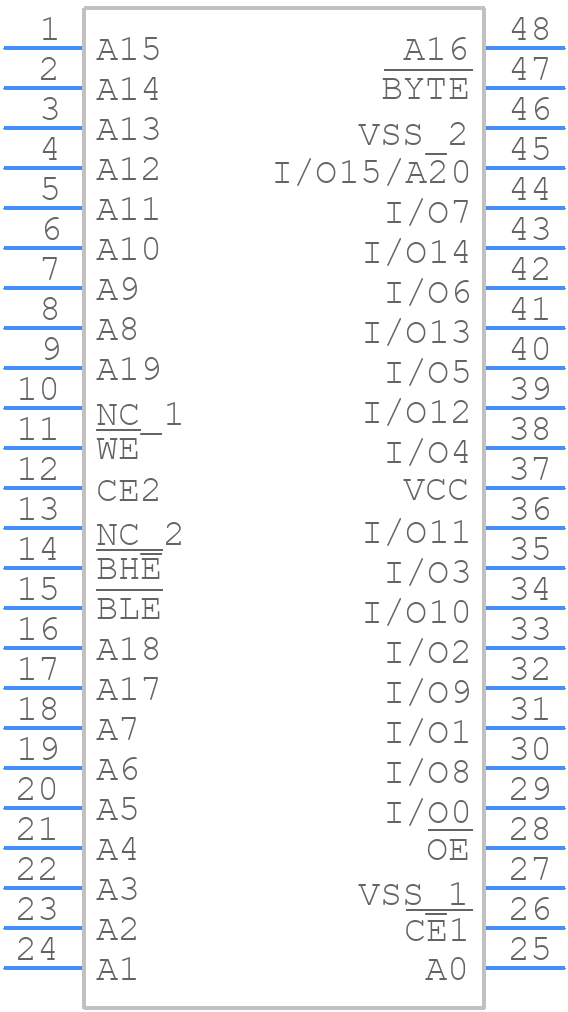

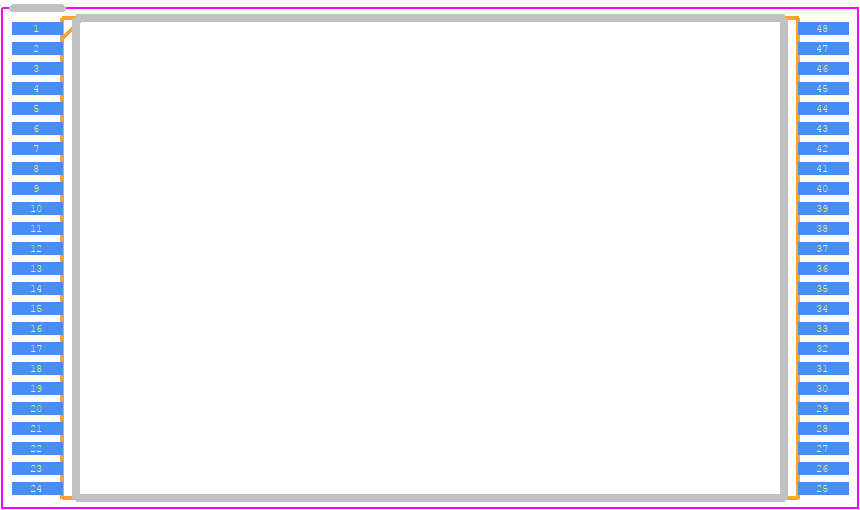

Use the download button to access the CY62167ELL-45ZXIT schematic symbol, PCB footprint, and 3D model.
