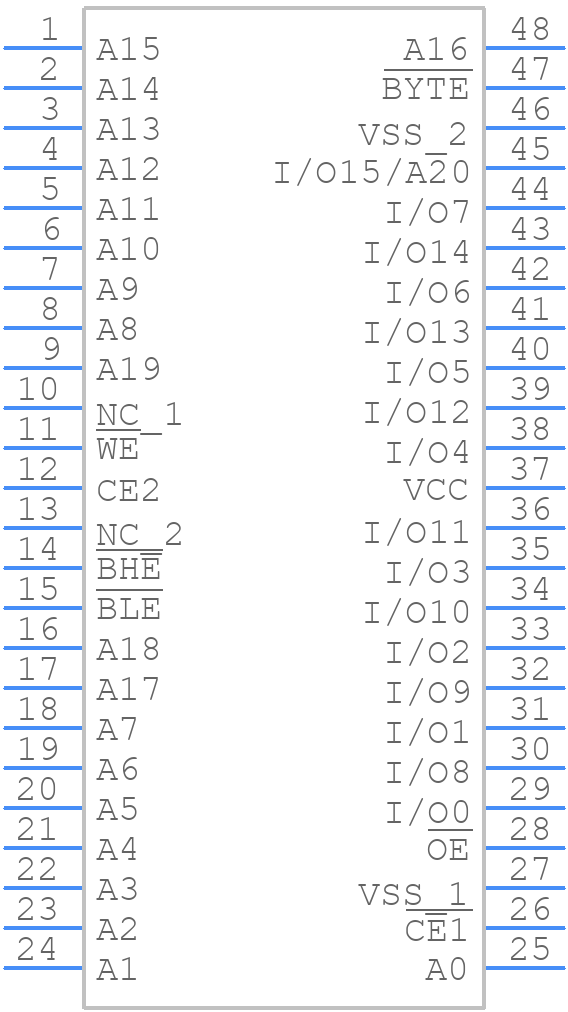

CY62167G30-45ZXI - Infineon

CY62167G30-45ZXI Details

• Manufacturer Part Number:

  CY62167G30-45ZXI

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• ECCN Code:

  3A991.b.2.a

• HTS Code:

  8542.32.00.41

• Manufacturer:

  Infineon Technologies AG

• YTEOL:

  8

• Access Time-Max:

  45 ns

• Alternate Memory Width:

  8

• I/O Type:

  COMMON

• JESD-30 Code:

  R-PDSO-G48

• JESD-609 Code:

  e3

• Length:

  18.4 mm

• Memory Density:

  16777216 bit

• Memory IC Type:

  STANDARD SRAM

• Memory Width:

  16

• Moisture Sensitivity Level:

  3

• Number of Functions:

  1

• Number of Ports:

  1

• Number of Terminals:

  48

• Number of Words:

  1048576 words

• Number of Words Code:

  1000000

• Operating Mode:

  ASYNCHRONOUS

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Organization:

  1MX16

• Output Characteristics:

  3-STATE

• Output Enable:

  YES

• Package Body Material:

  PLASTIC/EPOXY

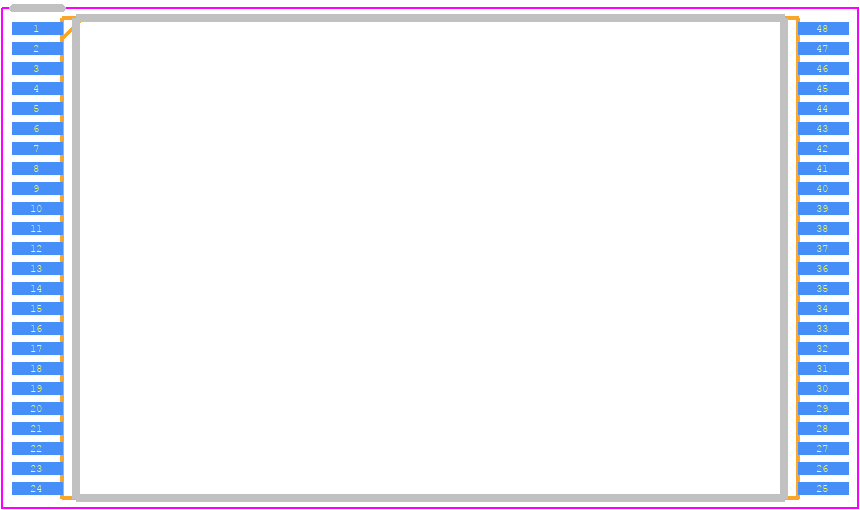

• Package Code:

  TSOP1

• Package Equivalence Code:

  TSOP48,47,20

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, THIN PROFILE

• Parallel/Serial:

  PARALLEL

• Seated Height-Max:

  1.2 mm

• Standby Current-Max:

  0.000016 A

• Standby Voltage-Min:

  1 V

• Supply Current-Max:

  0.036 mA

• Supply Voltage-Max (Vsup):

  3.6 V

• Supply Voltage-Min (Vsup):

  2.2 V

• Supply Voltage-Nom (Vsup):

  3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  DUAL

• Width:

  12 mm
