Infineon provides a recommended PCB layout guide in their application note AN201908-01, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
The CY62177EV18LL-70BAXIT requires a specific power-up and power-down sequencing to prevent damage or malfunction. Infineon recommends following the power-up and power-down sequence outlined in the datasheet, with VCC being the last power supply to be turned on and the first to be turned off.
The CY62177EV18LL-70BAXIT has a thermal junction-to-case resistance (RθJC) of 10°C/W. To ensure reliable operation, Infineon recommends using a heat sink or thermal pad to maintain a junction temperature below 125°C. Additionally, the device should be placed on a multi-layer PCB with thermal vias to dissipate heat effectively.
The CY62177EV18LL-70BAXIT is not specifically designed or tested for radiation-hardened applications. If radiation hardness is required, Infineon recommends using their radiation-hardened products, such as the RH108 or RH128, which are designed to meet the requirements of aerospace and defense applications.
Infineon recommends following the JEDEC J-STD-020D.1 standard for soldering the CY62177EV18LL-70BAXIT. The recommended soldering profile includes a peak temperature of 260°C, with a dwell time above 217°C of 60-90 seconds.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CY62177EV18LL-70BAXIT Overview

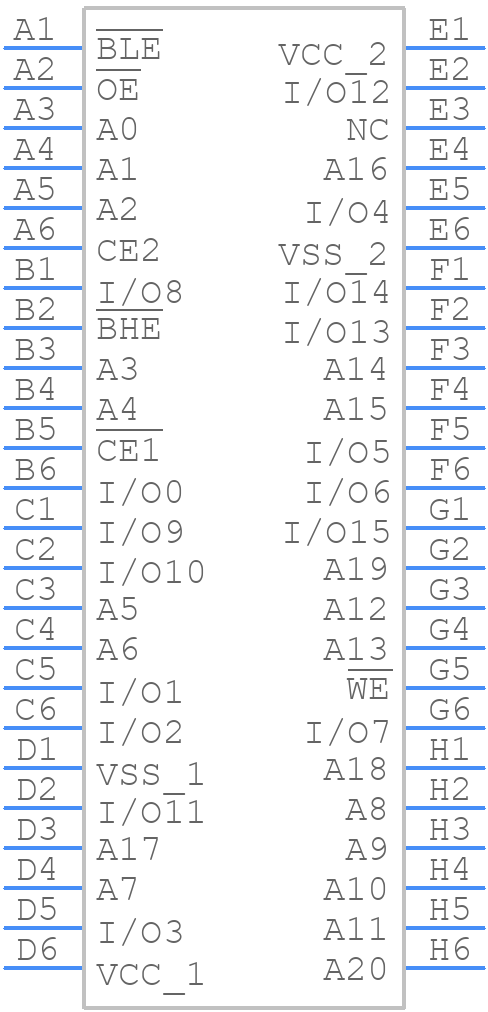

Use the download button to access the CY62177EV18LL-70BAXIT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CY621,
or try a keyword search, such as SRAMs
