CY62177EV30LL-55ZXI - Infineon

Description: Cypress Semiconductor CY62177EV30LL-55ZXI SRAM Memory, 32Mbit, 2.2 → 3.7 V, 55ns 48-Pin TSOP

Download CY62177EV30LL-55ZXI Model

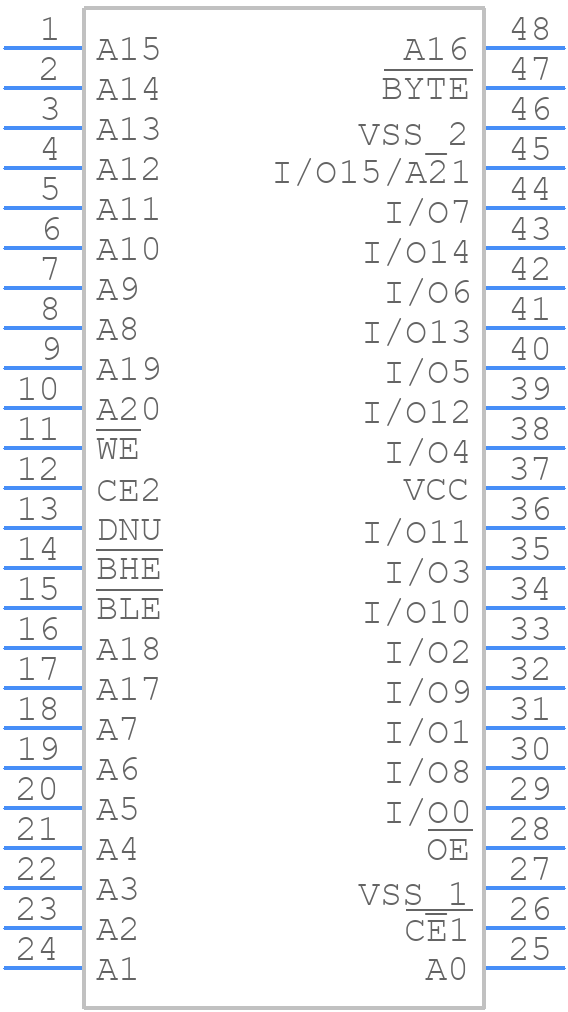

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

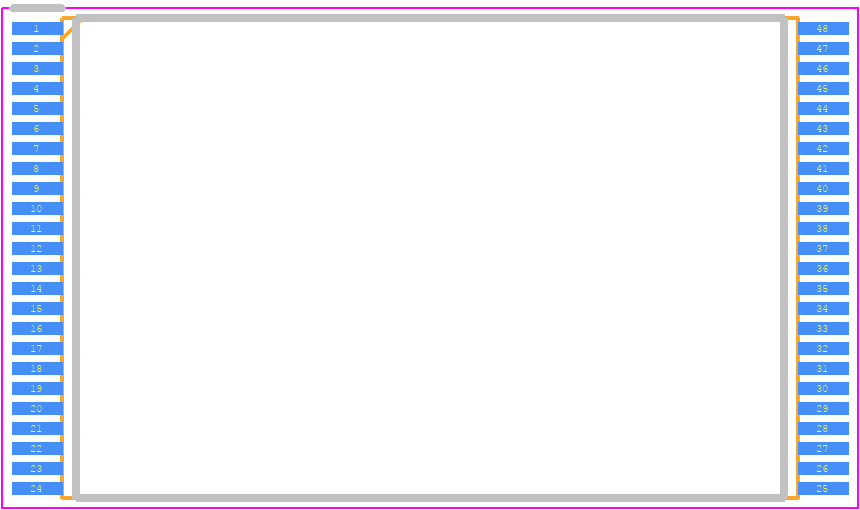

CY62177EV30LL-55ZXI - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - TS 048—48-Pin Standard TSOP_1
click to zoom
3D Models
CY62177EV30LL-55ZXI - Infineon  - 3D model - Small Outline Packages - TS 048—48-Pin Standard TSOP_1
click to zoom

CY62177EV30LL-55ZXI Details

  • Manufacturer Part Number:

    CY62177EV30LL-55ZXI

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan, Thailand

  • ECCN Code:

    3A991.b.2.a

  • HTS Code:

    8542.32.00.41

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    8

  • Access Time-Max:

    55 ns

  • Alternate Memory Width:

    8

  • I/O Type:

    COMMON

  • JESD-30 Code:

    R-PDSO-G48

  • JESD-609 Code:

    e3

  • Length:

    18.4 mm

  • Memory Density:

    33554432 bit

  • Memory IC Type:

    STANDARD SRAM

  • Memory Width:

    16

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Number of Words:

    2097152 words

  • Number of Words Code:

    2000000

  • Operating Mode:

    ASYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    2MX16

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSOP1

  • Package Equivalence Code:

    TSSOP48,.8,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE

  • Parallel/Serial:

    PARALLEL

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Standby Current-Max:

    0.000017 A

  • Standby Voltage-Min:

    1.5 V

  • Supply Current-Max:

    0.045 mA

  • Supply Voltage-Max (Vsup):

    3.7 V

  • Supply Voltage-Min (Vsup):

    2.2 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    20

  • Width:

    12 mm

CY62177EV30LL-55ZXI Frequently Asked Questions (FAQs)

  • The CY62177EV30LL-55ZXI can operate from -40°C to 85°C.
  • The device has a built-in power-on reset circuit, which initializes the device on power-up. For power-down, it is recommended to disable the chip enable (CE) and output enable (OE) signals before powering down.
  • The CY62177EV30LL-55ZXI supports clock frequencies up to 133 MHz.
  • The device has a built-in data retention feature, which retains data for a minimum of 10 years at 85°C. To ensure data retention, the device must be powered down properly, and the VCC supply voltage must be reduced to 0V.
  • The typical current consumption of the CY62177EV30LL-55ZXI is 30 mA at 55 MHz and 3.3V VCC.
