Infineon provides a recommended PCB layout guide in their application note AN201908-01, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
The CY62177G30-55ZXI has a specific power-up and power-down sequencing requirement to prevent latch-up and ensure proper operation. It's recommended to follow the power-up and power-down sequence described in the datasheet, and to use a power management IC or a dedicated power-up reset circuit to ensure a clean power-up and power-down sequence.
While the datasheet specifies an operating temperature range of -40°C to 85°C, it's essential to note that the device can operate up to 105°C with reduced performance and reliability. However, it's recommended to operate the device within the specified temperature range for optimal performance and reliability.
To ensure data integrity, it's recommended to use a voltage supervisor or a power management IC that can detect power-down or brownout conditions and initiate a controlled shutdown sequence. Additionally, implementing a data backup or retention mechanism, such as a battery-backed SRAM or a non-volatile memory, can help prevent data corruption.
The CY62177G30-55ZXI has built-in ESD protection and latch-up prevention mechanisms, including diodes and resistors to protect against electrostatic discharge and latch-up. However, it's still recommended to follow proper ESD handling and storage procedures, and to use a latch-up prevention circuit or a dedicated ESD protection device if necessary.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CY62177G30-55ZXI Overview

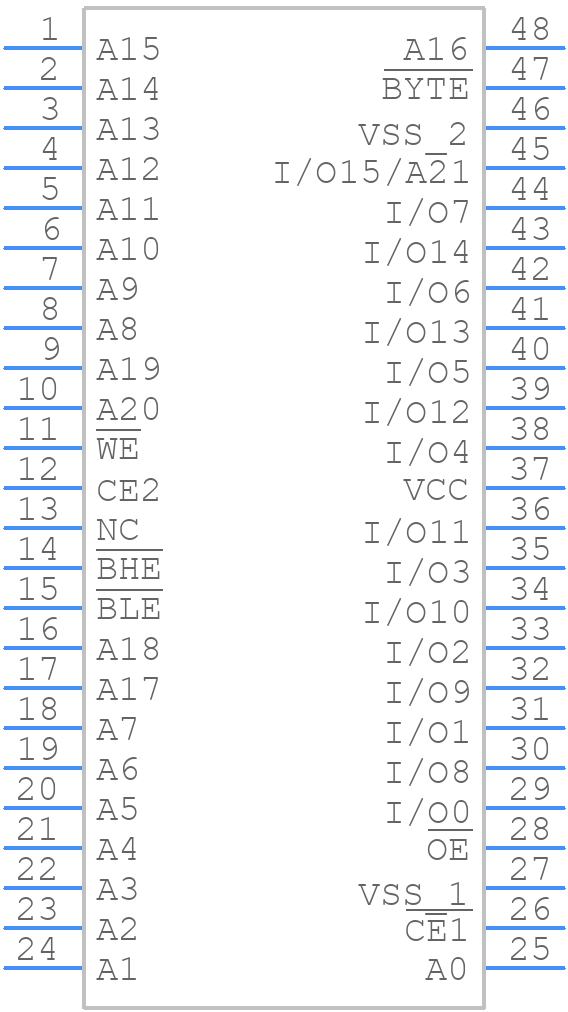

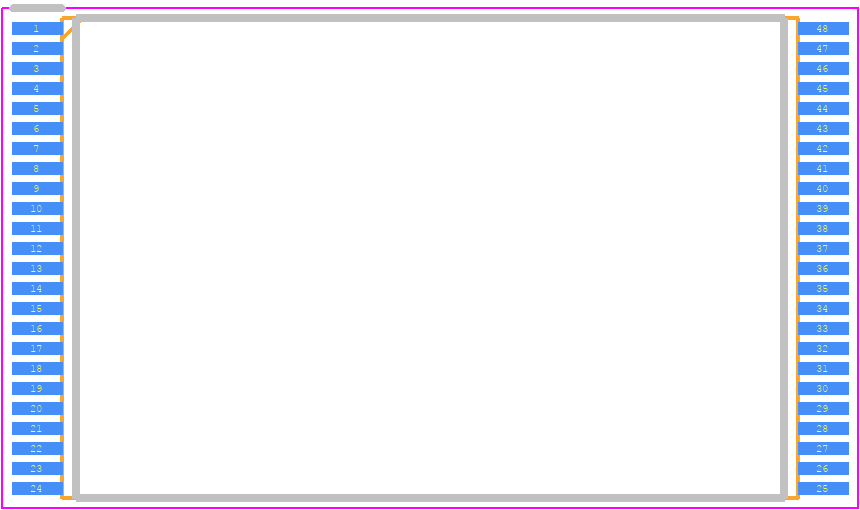

Use the download button to access the CY62177G30-55ZXI schematic symbol, PCB footprint, and 3D model.
