CY62256NLL-70SNXC - Alliance Memory

Description: SRAM 256K 32K x 8 4.5-5.5V 28pin 330mil SOP Commercial (0 70 C) Low Power Asynch

Download CY62256NLL-70SNXC Model

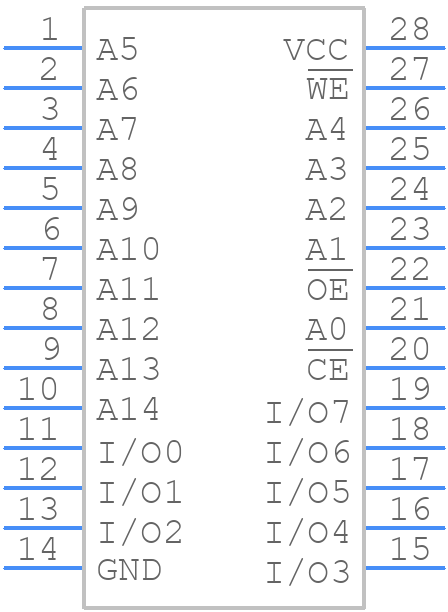

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

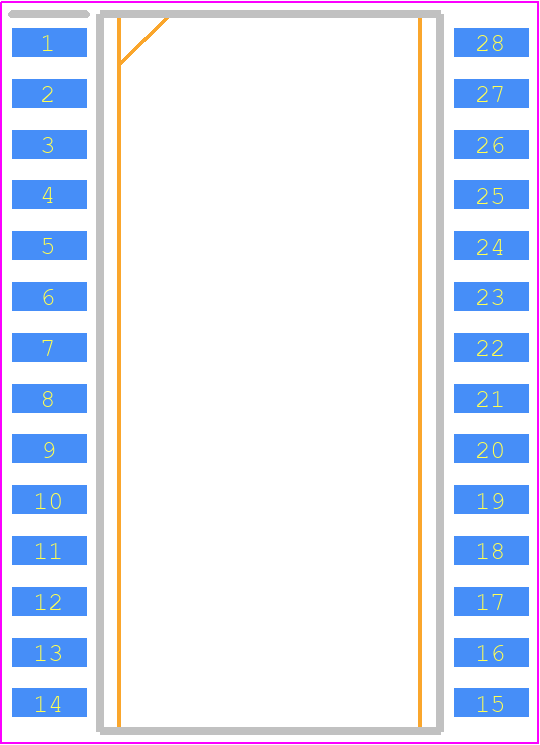

CY62256NLL-70SNXC - Alliance Memory PCB footprint - Small Outline Packages - Small Outline Packages - 28-pin SNC (300 Mils) SN28.3 (Narrow Body) Package Outline
click to zoom
3D Models
CY62256NLL-70SNXC - Alliance Memory  - 3D model - Small Outline Packages - 28-pin SNC (300 Mils) SN28.3 (Narrow Body) Package Outline
click to zoom

CY62256NLL-70SNXC Details

  • Manufacturer Part Number:

    CY62256NLL-70SNXC

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-28

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.41

  • Manufacturer:

    Alliance Memory Inc

  • YTEOL:

    4

  • Access Time-Max:

    70 ns

  • I/O Type:

    COMMON

  • JESD-30 Code:

    R-PDSO-G28

  • Length:

    17.9324 mm

  • Memory Density:

    262144 bit

  • Memory IC Type:

    STANDARD SRAM

  • Memory Width:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Number of Words:

    32768 words

  • Number of Words Code:

    32000

  • Operating Mode:

    ASYNCHRONOUS

  • Operating Temperature-Max:

    70 °C

  • Organization:

    32KX8

  • Output Enable:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP28,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Parallel/Serial:

    PARALLEL

  • Seated Height-Max:

    2.794 mm

  • Standby Current-Max:

    0.000005 A

  • Standby Voltage-Min:

    2 V

  • Supply Current-Max:

    0.05 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    7.5057 mm

CY62256NLL-70SNXC Frequently Asked Questions (FAQs)

  • The CY62256NLL-70SNXC operates over a temperature range of 0°C to 70°C.
  • The device requires a stable power supply during power-up and power-down sequences. It's recommended to follow a slow power ramp-up and ramp-down sequence to ensure proper operation.
  • The CY62256NLL-70SNXC can operate at clock frequencies up to 70 MHz, but the recommended frequency is 50 MHz for optimal performance.
  • To avoid bus contention, ensure that only one device is driving the bus at a time. For bus loading, follow the recommended loading guidelines in the datasheet to ensure signal integrity.
  • The CY62256NLL-70SNXC has a latency of 10 ns, which is the time it takes for the device to output data after receiving a read request.
