The CY7C1041GN-10ZSXIT can operate from -40°C to 85°C.
The device has a built-in power-on reset circuit, which initializes the device on power-up. For power-down, ensure that the voltage supply is reduced to 0V to prevent data corruption.
The CY7C1041GN-10ZSXIT supports clock frequencies up to 10 MHz.
To ensure data retention, the VCC supply voltage should be reduced to 0V, and the CE# and OE# pins should be held high during power-down.
The typical standby current consumption of the CY7C1041GN-10ZSXIT is 10 mA.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CY7C1041GN-10ZSXIT Overview

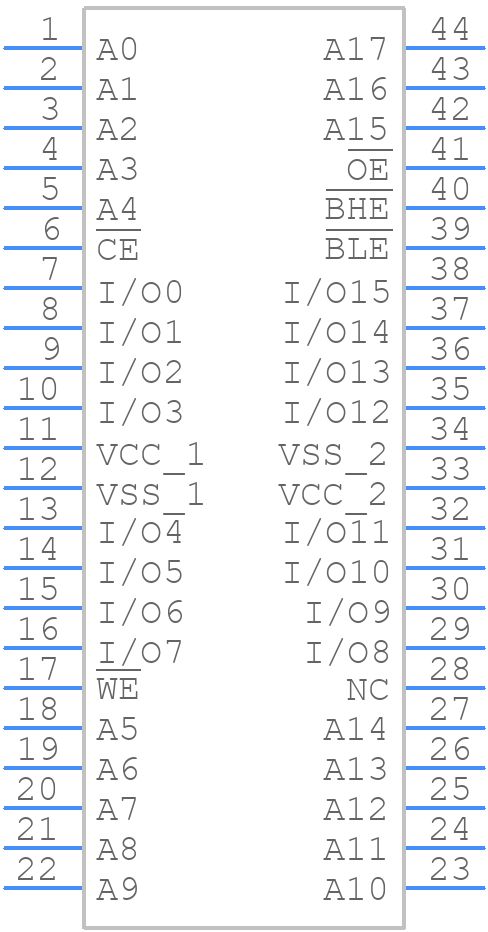

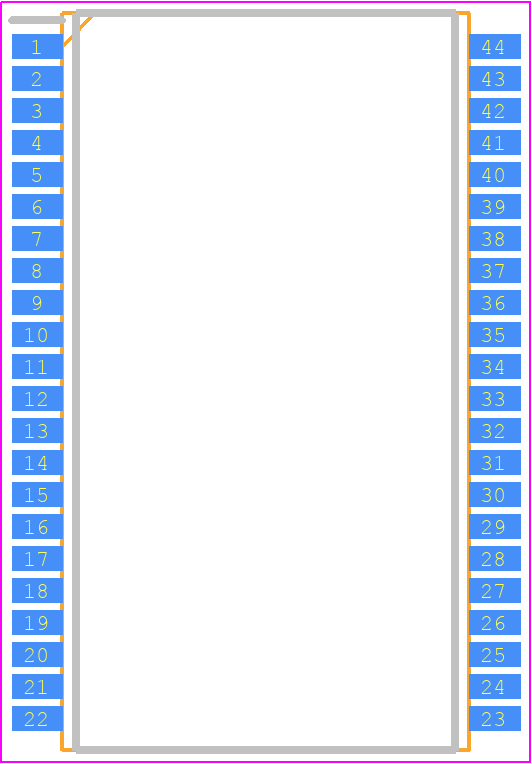

Use the download button to access the CY7C1041GN-10ZSXIT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CY7C1,
or try a keyword search, such as SRAMs
