CY7C136-55NC - Infineon

Description: IC SRAM 16K PARALLEL 52PQFP

Download CY7C136-55NC Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this CY7C136-55NC model

Email notifications will be applied after download.

Send part feedback

Symbol

CY7C136-55NC - Infineon - PCB symbol

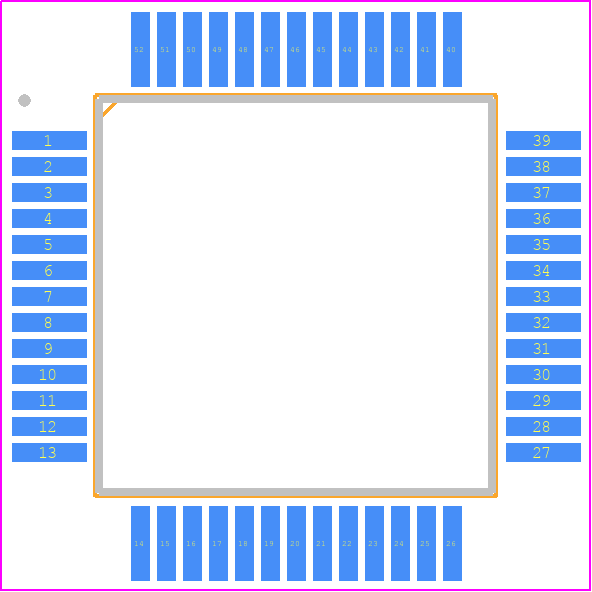

PCB Footprints

CY7C136-55NC - Infineon PCB footprint - Quad Flat Packages - Quad Flat Packages - 52-Pin Plastic Quad Flatpack, 51-85042

3D Models

CY7C136-55NC - Infineon - 3D model - Quad Flat Packages - 52-Pin Plastic Quad Flatpack, 51-85042

Datasheet Download Datasheet
Stock & Prices Price & Stock for CY7C136-55NC
Part Number CY7C136-55NC
Manufacturer Infineon
Pin Count 52
Part Category Integrated Circuit
Package Category Quad Flat Packages
Footprint Name Quad Flat Packages - 52-Pin Plastic Quad Flatpack, 51-85042
Released Date Mar 18, 2020
Last Modified Date Jan 25, 2024 9:25 PM UTC
Pinout / Pin List Click Here (Member Only)

CY7C136-55NC Details

Manufacturer Part Number:
CY7C136-55NC
Manufacturer:
Infineon Technologies AG

Trust Checks

Expert Contribution

System Verified

Community Approved

CY7C136-55NC Overview

Use the download button to access the CY7C136-55NC schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like CY7C1, or try a keyword search, such as SRAMs
