A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from noise sources. Use a common mode filter or a ferrite bead to reduce EMI.
Use a shielded USB cable, and ensure that the USB signal lines are properly terminated. Implement a robust error handling mechanism in your firmware to handle data transmission errors.
The device has a thermal pad on the bottom, which should be connected to a thermal plane on the PCB. Ensure good airflow around the device, and consider using a heat sink if the device is expected to operate in high-temperature environments.
Use the device's power management features, such as the low-power mode and the suspend mode. Implement a power gating strategy in your firmware to reduce power consumption when the device is idle.
The device has built-in ESD protection, but it's still important to follow proper ESD handling procedures during manufacturing and assembly. Use ESD-protective packaging and handling materials, and ensure that the device is properly grounded during assembly.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CY7C63413C-PVXC Overview

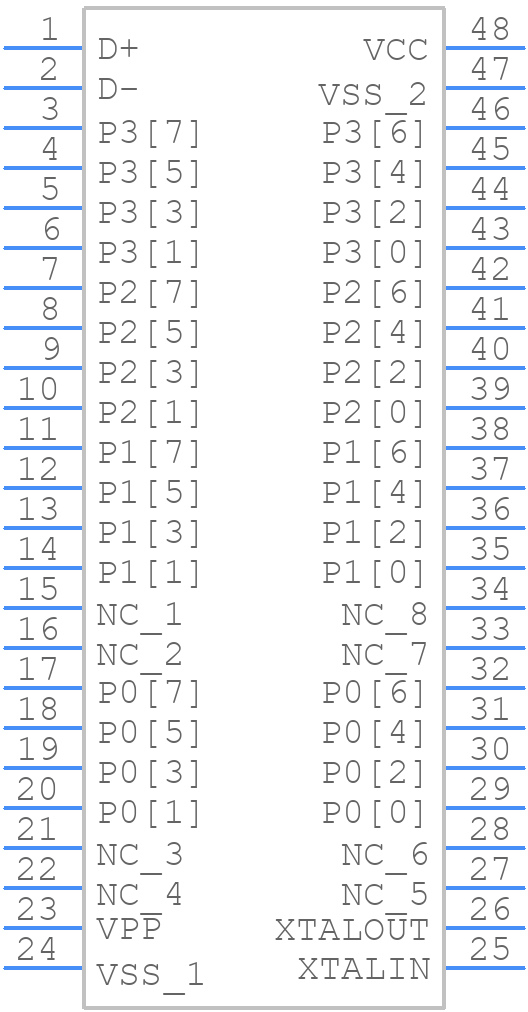

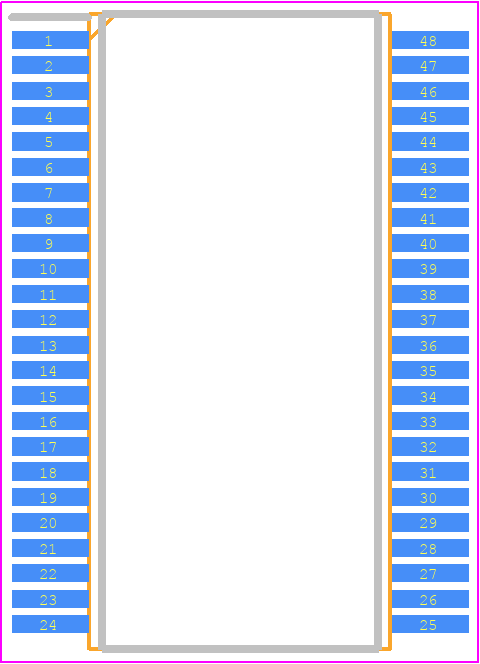

Use the download button to access the CY7C63413C-PVXC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CY7C6,
or try a keyword search, such as Bus Controllers
