CY7C63823-SXC - Infineon

Description: USB Controller USB 2.0 GPIO, SPI Interface 24-SOIC

Download CY7C63823-SXC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

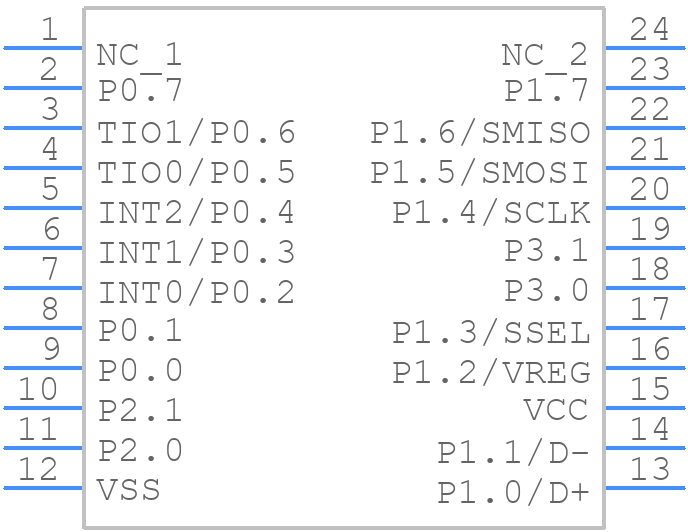

CY7C63823-SXC - Infineon - PCB symbol
click to zoom
PCB Footprints

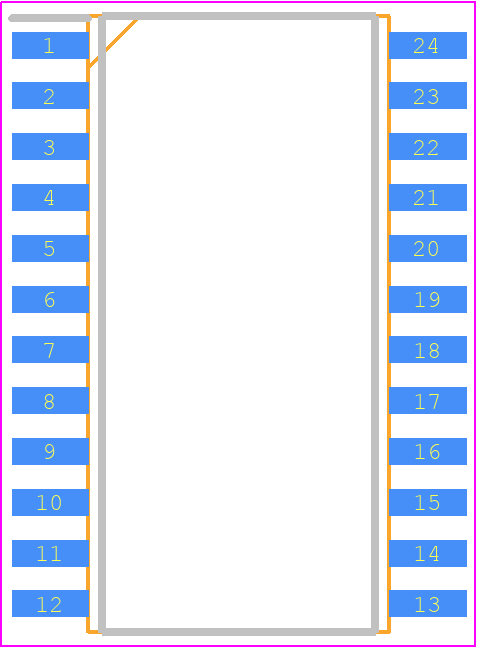

CY7C63823-SXC - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - 24-pin SOIC
click to zoom
3D Models
CY7C63823-SXC - Infineon - 3D model - Small Outline Packages - 24-pin SOIC
click to zoom

CY7C63823-SXC Details

  • Manufacturer Part Number:

    CY7C63823-SXC

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • HTS Code:

    8542.31.00.30

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • JESD-609 Code:

    e4

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Time@Peak Reflow Temperature-Max (s):

    20

  • uPs/uCs/Peripheral ICs Type:

    BUS CONTROLLER, UNIVERSAL SERIAL BUS

CY7C63823-SXC Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the CY7C63823-SXC is -40°C to 85°C.
  • The FIFO interface of the CY7C63823-SXC can be configured using the FX2LP's EEPROM or through software using the USB interface. The configuration options include FIFO mode, data width, and flow control.
  • The maximum data transfer rate of the CY7C63823-SXC is 480 Mbps.
  • Yes, the CY7C63823-SXC supports isochronous data transfer, which is useful for applications that require guaranteed bandwidth and low latency.
  • To implement a custom vendor-specific device class with the CY7C63823-SXC, you need to modify the device's firmware to include the custom class and interface descriptors. You may also need to modify the host-side driver to recognize and communicate with the custom device class.
