CY7C65210-24LTXI - Infineon

Description: Full Speed USB Controller USB 2.0 1.8V/2.5V/3.3V/5V Tray 24-Pin QFN EP

Download CY7C65210-24LTXI Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

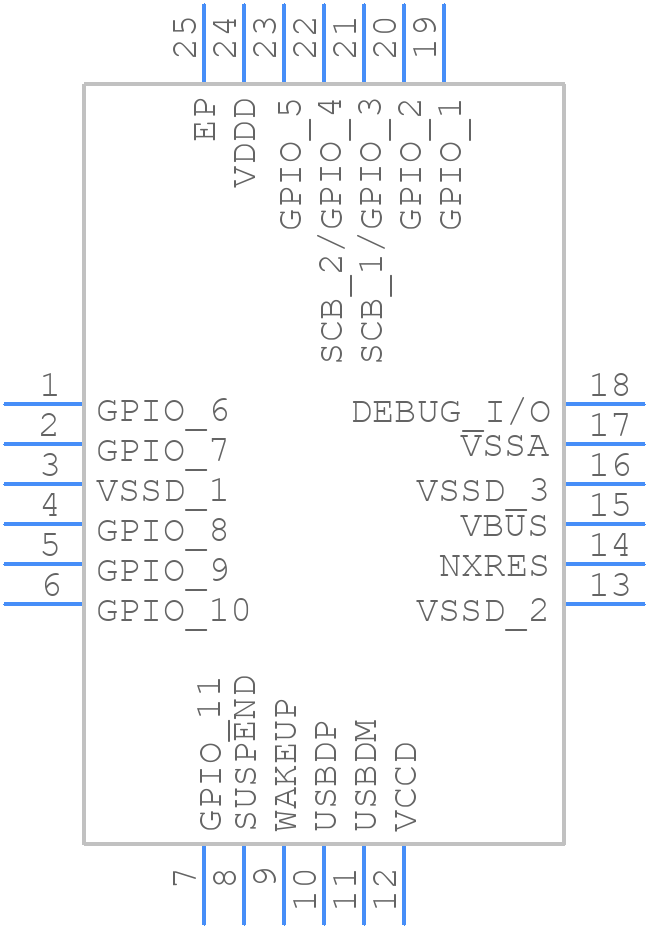

CY7C65210-24LTXI - Infineon - PCB symbol
click to zoom
PCB Footprints
CY7C65210-24LTXI - Infineon PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 24-pin QFN
click to zoom
3D Models
CY7C65210-24LTXI - Infineon - 3D model - Quad Flat No-Lead - 24-pin QFN
click to zoom

CY7C65210-24LTXI Details

  • Manufacturer Part Number:

    CY7C65210-24LTXI

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • HTS Code:

    8542.31.00.30

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    7

CY7C65210-24LTXI Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the CY7C65210-24LTXI is -40°C to 85°C.
  • The CY7C65210-24LTXI can be configured for I2C or SPI mode by setting the appropriate pins high or low during power-up. Refer to the application note or user manual for specific configuration details.
  • The CY7C65210-24LTXI supports data transfer rates up to 480 Mbps in I2C mode and up to 40 Mbps in SPI mode.
  • The CY7C65210-24LTXI has a built-in suspend and resume feature that can be controlled through the SUSPEND and RESUME pins. Refer to the datasheet for specific details on how to implement this feature.
  • The power consumption of the CY7C65210-24LTXI varies depending on the operating mode. In I2C mode, the typical power consumption is around 50 mA, while in SPI mode it is around 20 mA. In suspend mode, the power consumption is typically around 1 mA.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CY7C65210-24LTXI Overview

Use the download button to access the CY7C65210-24LTXI schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CY7C6, or try a keyword search, such as Other uPs/uCs/Peripheral ICs
