CY7C65213-28PVXIT - Infineon

Description: USB Interface IC 32KB USB-UART LP Bridge Controller

Download CY7C65213-28PVXIT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

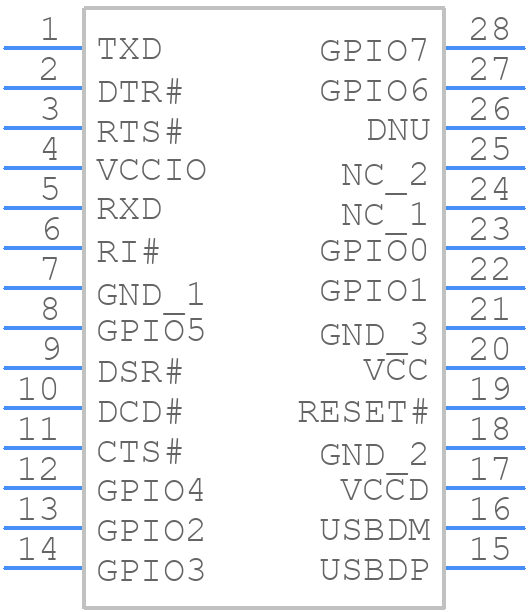

CY7C65213-28PVXIT - Infineon - PCB symbol
click to zoom
PCB Footprints
CY7C65213-28PVXIT - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - SSOP28
click to zoom
3D Models
CY7C65213-28PVXIT - Infineon - 3D model - Small Outline Packages - SSOP28
click to zoom

CY7C65213-28PVXIT Details

  • Manufacturer Part Number:

    CY7C65213-28PVXIT

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SSOP-28

  • ECCN Code:

    3A991.B.2.B

  • HTS Code:

    8542.31.00.01

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    7.25

  • Bus Compatibility:

    UART

  • Clock Frequency-Max:

    48 MHz

  • Data Transfer Rate-Max:

    1.5 MBps

  • Drive Interface Standard:

    RS232; RS422

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e4

  • Length:

    10.2 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Seated Height-Max:

    2 mm

  • Supply Current-Max:

    18 mA

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    3.15 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    5.3 mm

  • uPs/uCs/Peripheral ICs Type:

    BUS CONTROLLER, UNIVERSAL SERIAL BUS
