The recommended PCB layout for the CY7C65213A-28PVXI can be found in the Cypress (now Infineon) application note AN57294, which provides guidelines for PCB design, layout, and routing to ensure optimal performance and minimize electromagnetic interference (EMI).
The CY7C65213A-28PVXI can be configured for I2C or SPI mode by setting the appropriate values on the MODE[1:0] pins during power-up. For I2C mode, set MODE[1:0] = 00, and for SPI mode, set MODE[1:0] = 01 or 10. The specific configuration details can be found in the datasheet and the Cypress (now Infineon) application note AN54451.
The maximum cable length supported by the CY7C65213A-28PVXI depends on the specific application and the signal frequency. As a general guideline, the device can support cable lengths up to 3 meters at 480 Mbps and up to 1 meter at 1024 Mbps. However, it's recommended to consult the datasheet and perform signal integrity analysis to determine the maximum cable length for a specific application.
Firmware updates for the CY7C65213A-28PVXI can be implemented using the Cypress (now Infineon) EZ-USB FX3 SDK, which provides a firmware development kit (FDK) and a software development kit (SDK). The FDK allows developers to create custom firmware, while the SDK provides a set of APIs and tools for developing applications that interact with the device.
The CY7C65213A-28PVXI has a maximum junction temperature (TJ) of 125°C. To ensure reliable operation, it's essential to implement proper thermal management, such as providing adequate heat dissipation, using thermal pads or heat sinks, and avoiding high ambient temperatures. The datasheet provides thermal resistance values and guidelines for thermal management.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CY7C65213A-28PVXI Overview

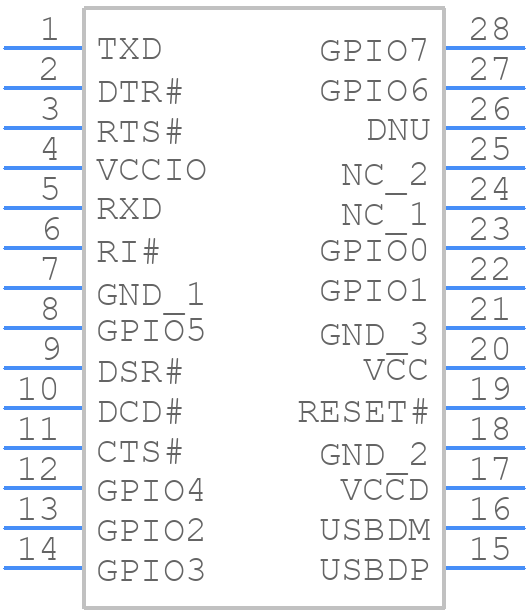

Use the download button to access the CY7C65213A-28PVXI schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CY7C6,
or try a keyword search, such as Bus Controllers
