The recommended PCB layout for the CY7C65213A-32LTXIT can be found in the Cypress (now Infineon) application note AN57294, which provides guidelines for PCB design, layout, and routing to ensure optimal performance and signal integrity.
The CY7C65213A-32LTXIT can be configured for I2C or SPI mode through the use of external resistors and capacitors. The specific configuration depends on the application and can be found in the datasheet or in application notes such as AN54451 or AN57294.
The maximum cable length supported by the CY7C65213A-32LTXIT depends on the specific application and the signal frequency. As a general guideline, the maximum cable length for USB 2.0 is 3 meters, while for I2C and SPI, it is typically limited to 1-2 meters. However, this can be extended using repeaters or buffers.
The CY7C65213A-32LTXIT has built-in power management features such as suspend and resume modes. To implement power management, the device can be controlled using the SUSPEND and RESUME pins, and the power consumption can be optimized by adjusting the clock frequency and voltage supply.
The CY7C65213A-32LTXIT has a maximum junction temperature of 125°C. To ensure reliable operation, the device should be operated within the recommended temperature range, and thermal management considerations such as heat sinks, thermal vias, and airflow should be implemented to prevent overheating.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CY7C65213A-32LTXIT Overview

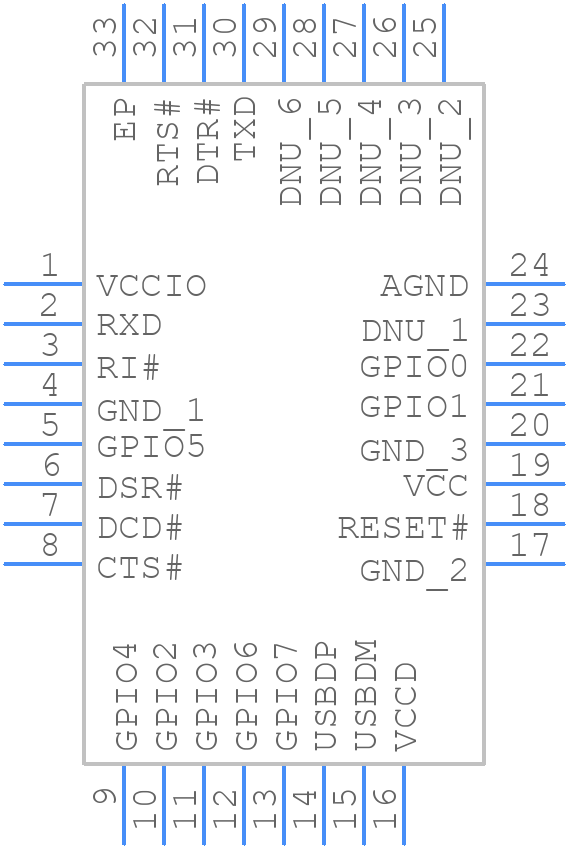

Use the download button to access the CY7C65213A-32LTXIT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CY7C6,
or try a keyword search, such as Bus Controllers
