CY7C65223-24LTXI footprint, schematic symbol and 3D model by Infineon

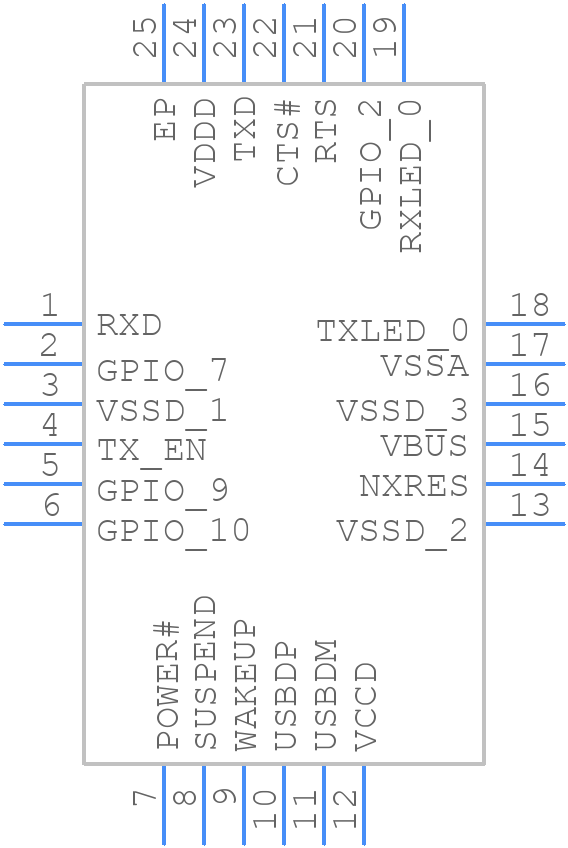

Symbol

PCB Footprints

3D Models

CY7C65223-24LTXI Details

Infineon provides a recommended PCB layout guide in their application note AN61324, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and reliability.
The CY7C65223-24LTXI supports firmware updates through its I2C or SPI interfaces. Infineon provides a firmware update tool and guidelines in their application note AN87216, which includes steps for creating a boot loader and updating firmware in the field.
The CY7C65223-24LTXI has a maximum junction temperature of 125°C. To ensure reliable operation, Infineon recommends following thermal management guidelines, such as using thermal vias, heat sinks, and thermal interface materials, as outlined in their application note AN61324.
Yes, the CY7C65223-24LTXI is a USB 3.0 compliant device and can be used in USB 3.0 applications. However, it's essential to follow the USB 3.0 specification and Infineon's guidelines for signal integrity, power management, and EMI compliance.
Infineon provides a troubleshooting guide in their application note AN87217, which includes steps for debugging common issues, such as device enumeration, data transfer, and power management. Additionally, engineers can use tools like logic analyzers and oscilloscopes to debug and analyze the device's behavior.

Community Provided

System Verified

Community Approved

Use the download button to access the CY7C65223-24LTXI schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like CY7C6, or try a keyword search, such as Bus Controllers
