CY7C65621-56LTXI - Infineon

Description: Cypress Semiconductor CY7C65621-56LTXI, USB Controller, 2-channel, 480Mbit/s, USB 2.0, 3.3 V, 56-Pin QFN

Download CY7C65621-56LTXI Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
CY7C65621-56LTXI - Infineon - PCB symbol
click to zoom
PCB Footprints

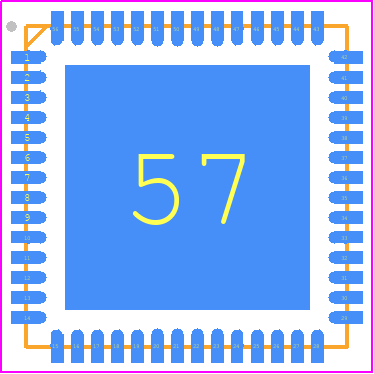

CY7C65621-56LTXI - Infineon PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 56-pin QFN 8 × 8 mm LF56A (Subcon Punch Type with 6.1 × 6.1 EPad
click to zoom
3D Models
CY7C65621-56LTXI - Infineon - 3D model - Quad Flat No-Lead - 56-pin QFN 8 × 8 mm LF56A (Subcon Punch Type with 6.1 × 6.1 EPad
click to zoom

CY7C65621-56LTXI Details

  • Manufacturer Part Number:

    CY7C65621-56LTXI

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • HTS Code:

    8542.31.00.30

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • Clock Frequency-Max:

    24 MHz

  • JESD-30 Code:

    S-XQCC-N56

  • JESD-609 Code:

    e4

  • Length:

    8 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    56

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC56,.31SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    190 mA

  • Supply Voltage-Max:

    3.45 V

  • Supply Voltage-Min:

    3.15 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    8 mm

  • uPs/uCs/Peripheral ICs Type:

    BUS CONTROLLER, UNIVERSAL SERIAL BUS

CY7C65621-56LTXI Frequently Asked Questions (FAQs)

  • The maximum cable length supported by the CY7C65621-56LTXI is 3 meters, but it can be extended up to 5 meters with proper signal conditioning and cable quality.
  • No, the CY7C65621-56LTXI is designed to work with USB-compliant devices only. Using it with a non-compliant device may result in unreliable operation or damage to the device.
  • The CY7C65621-56LTXI has built-in power management features, including suspend and resume capabilities. You can implement power management by using the device's power management pins and following the guidelines in the datasheet.
  • Yes, the CY7C65621-56LTXI is compatible with both USB 3.0 and USB 2.0 devices. It can operate at either high-speed (480 Mbps) or super-speed (5 Gbps) modes depending on the device connected.
  • The operating temperature range of the CY7C65621-56LTXI is -40°C to 85°C. However, it's recommended to operate the device within a temperature range of 0°C to 70°C for optimal performance.
