CY7C65632-28LTXC - Infineon

Description: USB HX2VL 4-Port Hub Controller,QFN28

Download CY7C65632-28LTXC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

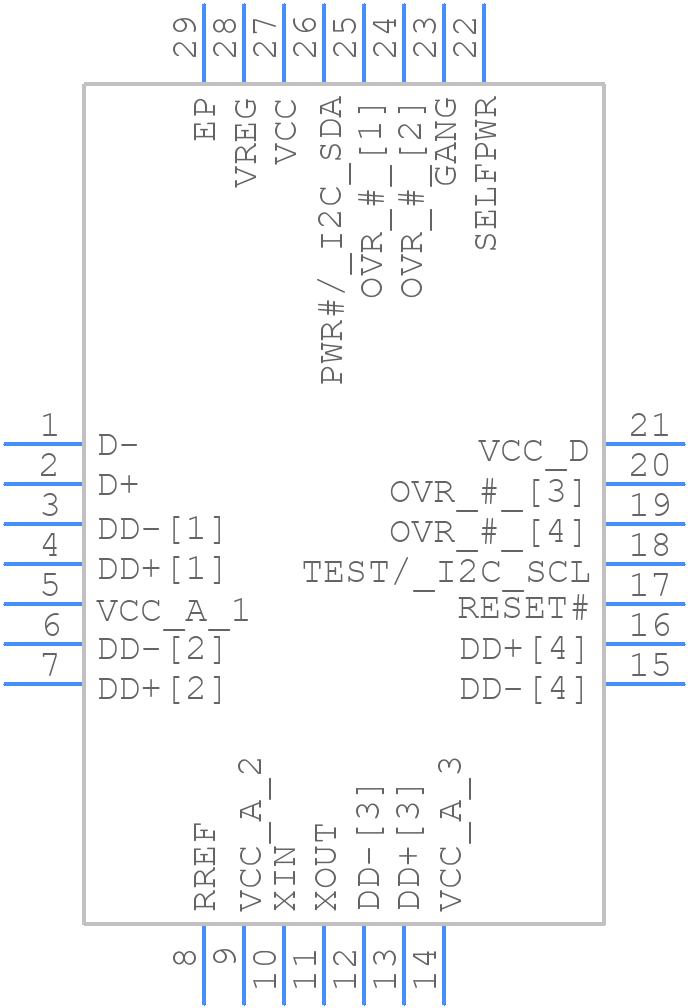

CY7C65632-28LTXC - Infineon - PCB symbol
click to zoom
PCB Footprints
CY7C65632-28LTXC - Infineon PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CY7C65632-28LTXC
click to zoom
3D Models
CY7C65632-28LTXC - Infineon - 3D model - Quad Flat No-Lead - CY7C65632-28LTXC
click to zoom

CY7C65632-28LTXC Details

  • Manufacturer Part Number:

    CY7C65632-28LTXC

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Similar Group:

    CT00109418631008

  • ECCN Code:

    3A991.a.2

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    6.65

  • Bus Compatibility:

    I2C; SPI

  • Clock Frequency-Max:

    48 MHz

  • JESD-30 Code:

    S-XQCC-N28

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC28,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    BULK

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    105.4 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3.15 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

  • uPs/uCs/Peripheral ICs Type:

    BUS CONTROLLER, UNIVERSAL SERIAL BUS

CY7C65632-28LTXC Frequently Asked Questions (FAQs)

  • The maximum cable length supported by the CY7C65632-28LTXC is 3 meters, but it can be extended up to 5 meters with the use of repeaters or active cables.
  • The CY7C65632-28LTXC has a built-in power management feature that can be controlled through the I2C interface. You can use the I2C interface to configure the power modes, including suspend, resume, and remote wake-up.
  • The CY7C65632-28LTXC supports data transfer rates up to 480 Mbps, making it suitable for high-speed applications such as video and audio streaming.
  • The CY7C65632-28LTXC has built-in error detection and correction mechanisms, including cyclic redundancy checks (CRC) and retry mechanisms. You can also implement custom error handling and retry logic using the device's interrupt and status registers.
  • The CY7C65632-28LTXC is designed to work with standard USB connectors, but it can be used with non-standard connectors with some modifications. However, this may require custom PCB design and layout, and may affect the device's performance and reliability.
