Please enter a minimum 3 letters or numbers
Technical Content
Part Image

CY7C65632-48AXCT - Infineon

Description: USB Interface IC USB High Speed Hub

Download CY7C65632-48AXCT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

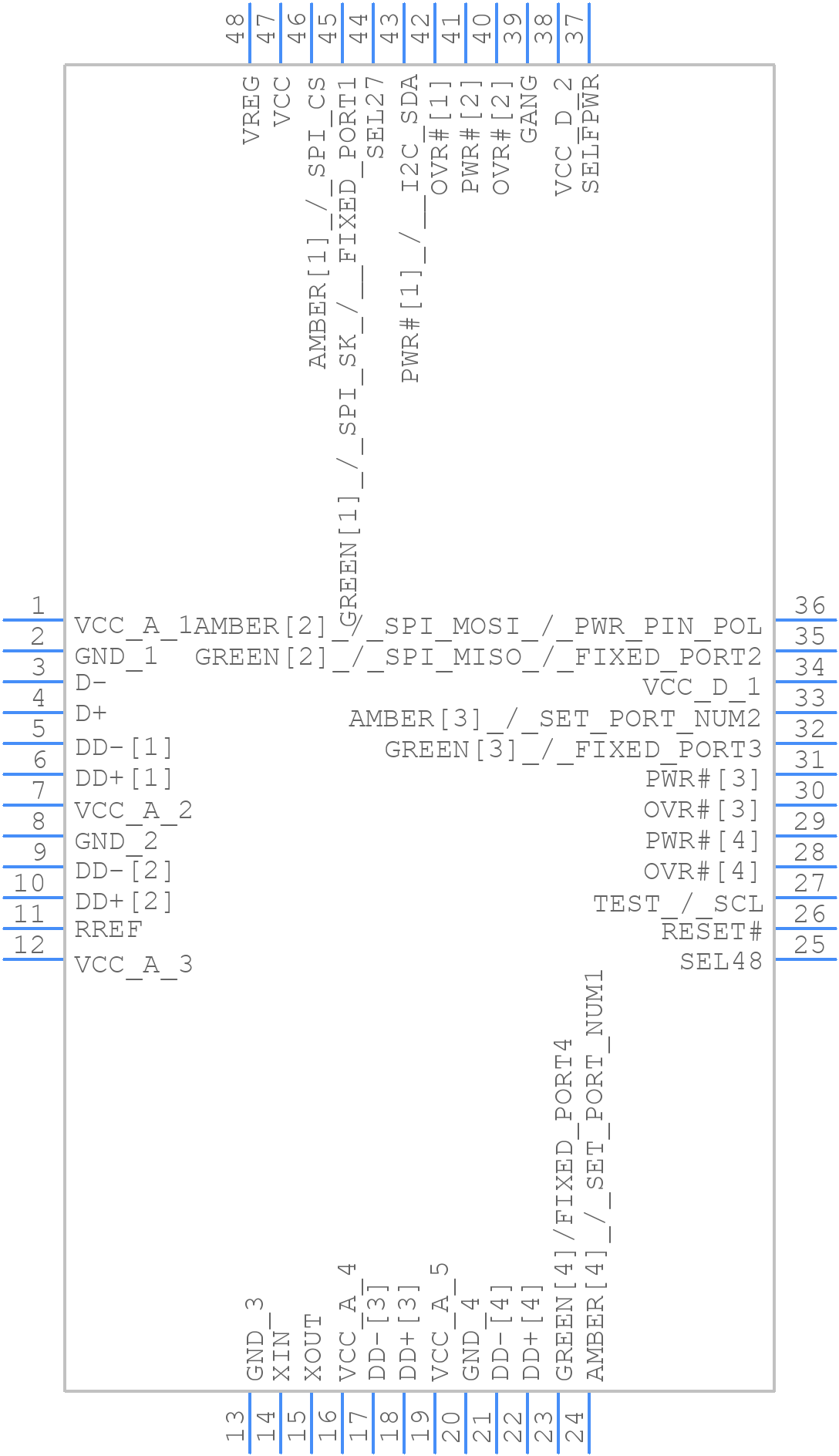

CY7C65632-48AXCT - Infineon - PCB symbol
click to zoom
PCB Footprints
CY7C65632-48AXCT - Infineon PCB footprint - Quad Flat Packages - Quad Flat Packages - 48-pin TQFP (7 × 7 × 1.4 mm) A48 Package Outline
click to zoom
3D Models
CY7C65632-48AXCT - Infineon - 3D model - Quad Flat Packages - 48-pin TQFP (7 × 7 × 1.4 mm) A48 Package Outline
click to zoom

CY7C65632-48AXCT Details

  • Manufacturer Part Number:

    CY7C65632-48AXCT

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFQFP, QFP48,.35SQ,20

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    3A991.a.2

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    6.35

  • Bus Compatibility:

    I2C; SPI

  • Clock Frequency-Max:

    48 MHz

  • JESD-30 Code:

    S-PQFP-G48

  • JESD-609 Code:

    e4

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFQFP

  • Package Equivalence Code:

    QFP48,.35SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE, FINE PITCH

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.6 mm

  • Supply Current-Max:

    105.4 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3.15 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Gold (Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    7 mm

  • uPs/uCs/Peripheral ICs Type:

    BUS CONTROLLER, UNIVERSAL SERIAL BUS

CY7C65632-48AXCT Frequently Asked Questions (FAQs)

  • The maximum cable length supported by the CY7C65632-48AXCT is 3 meters, but it can be extended up to 5 meters with the use of active cables or repeaters.
  • The CY7C65632-48AXCT can be configured for self-powered or bus-powered operation by setting the appropriate values in the device's configuration registers. Refer to the device's programming guide for more information.
  • The CY7C65632-48AXCT supports data transfer rates of up to 480 Mbps.
  • Remote wake-up functionality can be implemented by using the device's remote wake-up signal (RWU) and configuring the device to respond to wake-up requests from the host. Refer to the device's datasheet and programming guide for more information.
  • The CY7C65632-48AXCT has several power management options, including suspend mode, remote wake-up, and dynamic voltage scaling. These options can be configured using the device's configuration registers and programming interfaces.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CY7C65632-48AXCT Overview

Use the download button to access the CY7C65632-48AXCT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CY7C6, or try a keyword search, such as Bus Controllers

Parts related to CY7C65632-48AXCT

Showing 0 results

Part Image

← Prev Next →
About Us Contact Us Terms of Service Do not sell or share my personal information Privacy Policy Digital Services Act Library Loader Twitter LinkedIn

All content Copyright © 2020, Supplyframe.com. All rights reserved. Back to top ↑

CY7C65632-48AXCT Alternates

Showing results

Image Part Number Model
Part Image CY7C65632-48AXC Infineon Technologies AG

USB Bus Controller, CMOS, PQFP48
Part Image CY7C65632-48AXCT Cypress Semiconductor

USB Bus Controller, CMOS, PQFP48
