The maximum cable length supported by the CY7C65634-48AXC is 3 meters, but it can be extended up to 5 meters with the use of active cables or repeaters.
The CY7C65634-48AXC can be configured for self-powered or bus-powered operation by setting the appropriate values on the VBUS and GNP pins. Refer to the datasheet for specific configuration details.
The CY7C65634-48AXC can supply up to 2.5A of current to downstream devices, but this may vary depending on the specific application and power requirements.
Overcurrent protection can be implemented using an external overcurrent protection circuit or by using the CY7C65634-48AXC's built-in overcurrent protection feature, which can be enabled through register programming.
The recommended layout and routing for the CY7C65634-48AXC involves keeping the high-speed signals away from noise sources, using differential pairs for USB signals, and following the datasheet's guidelines for PCB layout and routing.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CY7C65634-48AXC Overview

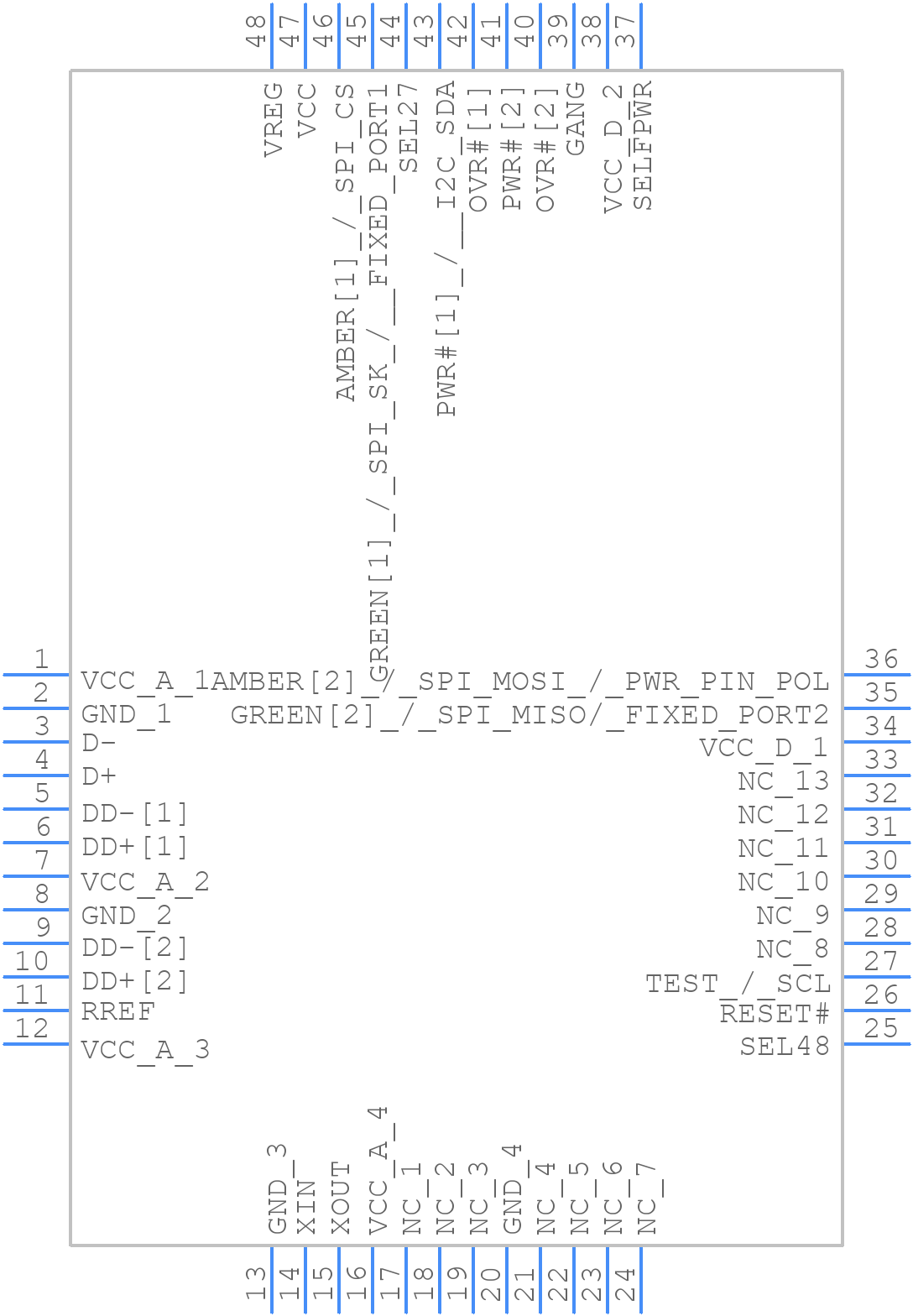

Use the download button to access the CY7C65634-48AXC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CY7C6,
or try a keyword search, such as Bus Controllers
