CY7C65634-48AXCT - Infineon

Description: 2 port Single-TT hub (configurable with GPIOs, , Port indicator and EEPROM) with 48-pin TQFP - Tape and reel, C-grade

Download CY7C65634-48AXCT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

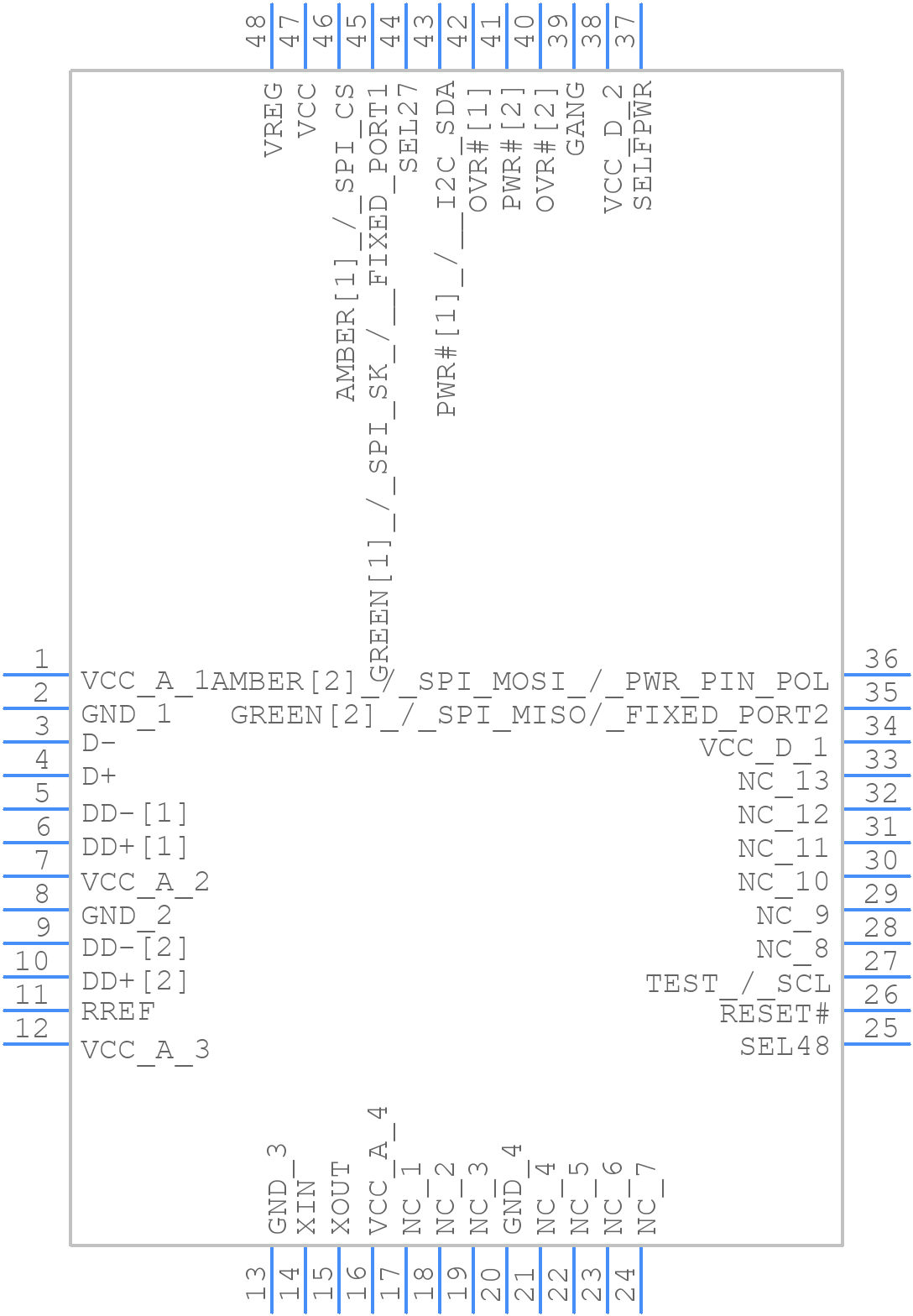

CY7C65634-48AXCT - Infineon - PCB symbol
click to zoom
PCB Footprints
CY7C65634-48AXCT - Infineon PCB footprint - Quad Flat Packages - Quad Flat Packages - 48-pin TQFP (7 × 7 × 1.4 mm) package outline
click to zoom
3D Models
CY7C65634-48AXCT - Infineon - 3D model - Quad Flat Packages - 48-pin TQFP (7 × 7 × 1.4 mm) package outline
click to zoom

CY7C65634-48AXCT Details

  • Manufacturer Part Number:

    CY7C65634-48AXCT

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.01

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    6.35

  • Bus Compatibility:

    I2C; SPI

  • Clock Frequency-Max:

    48 MHz

  • JESD-30 Code:

    S-PQFP-G48

  • JESD-609 Code:

    e4

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFQFP

  • Package Equivalence Code:

    QFP48,.35SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE, FINE PITCH

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.6 mm

  • Supply Current-Max:

    105.4 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3.15 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Gold (Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    7 mm

  • uPs/uCs/Peripheral ICs Type:

    BUS CONTROLLER, UNIVERSAL SERIAL BUS
