CY7C65642-28LTXC - Infineon

Description: Cypress Semiconductor CY7C65642-28LTXC, USB Controller, 5-channel, 12Mbit/s, USB 2.0, 5 V, 28-Pin QFN

Download CY7C65642-28LTXC Model

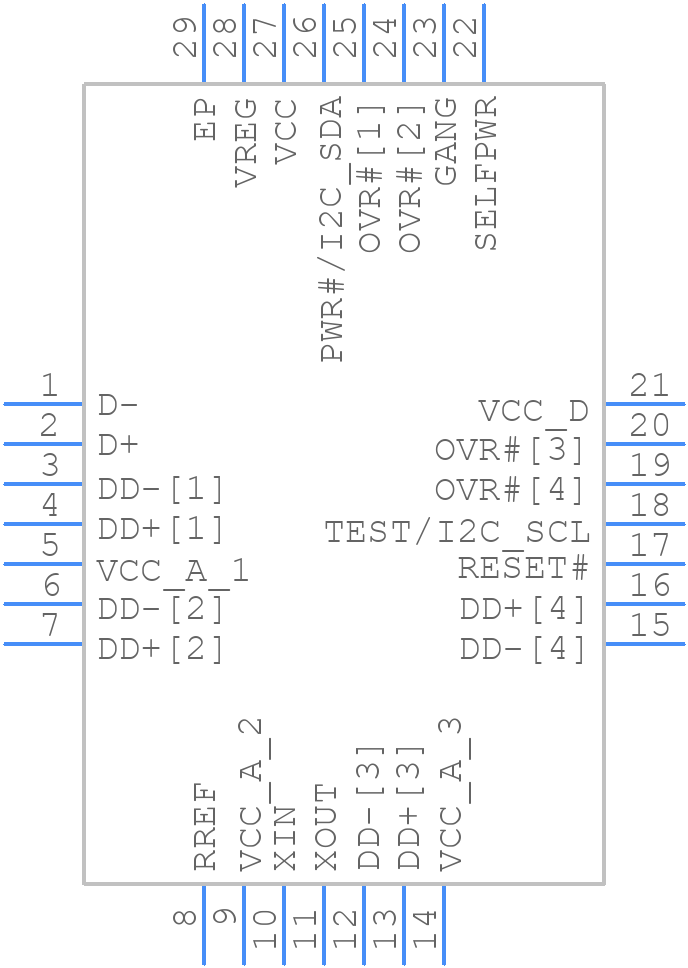

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
CY7C65642-28LTXC - Infineon PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 28-pin QFN (5 × 5 × 0.8 mm), LT28A (001-64621 2)
click to zoom
3D Models
CY7C65642-28LTXC - Infineon  - 3D model - Quad Flat No-Lead - 28-pin QFN (5 × 5 × 0.8 mm), LT28A (001-64621 2)
click to zoom

CY7C65642-28LTXC Details

  • Manufacturer Part Number:

    CY7C65642-28LTXC

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-28

  • Similar Group:

    CT00109418631008

  • ECCN Code:

    3A991.a.2

  • HTS Code:

    8542.31.00.30

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    6.65

  • Additional Feature:

    USB 2.0

  • Bus Compatibility:

    I2C; SPI; USB

  • Clock Frequency-Max:

    48 MHz

  • Data Transfer Rate-Max:

    1.5 MBps

  • JESD-30 Code:

    S-PQCC-N28

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC28,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TRAY

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    105.4 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3.15 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

  • uPs/uCs/Peripheral ICs Type:

    BUS CONTROLLER, UNIVERSAL SERIAL BUS
