CY7C68013A-56PVXCT - Infineon

Description: CYPRESS SEMICONDUCTOR - CY7C68013A-56PVXCT - MCU, USB Peripheral Controller, 8051, 24 MHz, 8 bit, 16 KB RAM, I2C, USART, USB, SSOP-56

Download CY7C68013A-56PVXCT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
CY7C68013A-56PVXCT - Infineon - PCB symbol
click to zoom
PCB Footprints

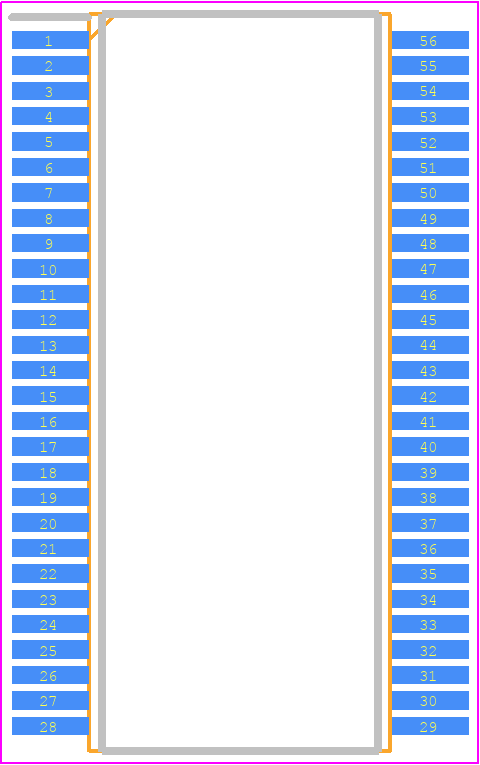

CY7C68013A-56PVXCT - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - 56-Pin Shrunk Small Outline Package O56 (51-85062)
click to zoom
3D Models
CY7C68013A-56PVXCT - Infineon - 3D model - Small Outline Packages - 56-Pin Shrunk Small Outline Package O56 (51-85062)
click to zoom

CY7C68013A-56PVXCT Details

  • Manufacturer Part Number:

    CY7C68013A-56PVXCT

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    3A991.a.2

  • HTS Code:

    8542.31.00.30

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • Address Bus Width:

    16

  • Bus Compatibility:

    I2C; UART; USB

  • Clock Frequency-Max:

    48 MHz

  • Data Transfer Rate-Max:

    60 MBps

  • External Data Bus Width:

    8

  • JESD-30 Code:

    R-PDSO-G56

  • JESD-609 Code:

    e4

  • Length:

    18.415 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    56

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP56,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2.794 mm

  • Supply Current-Max:

    85 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5057 mm

  • uPs/uCs/Peripheral ICs Type:

    BUS CONTROLLER, UNIVERSAL SERIAL BUS

CY7C68013A-56PVXCT Frequently Asked Questions (FAQs)

  • The maximum cable length supported by the CY7C68013A-56PVXCT is 3 meters, but it can be extended up to 10 meters with the use of repeaters or hubs.
  • To implement a custom firmware for the CY7C68013A-56PVXCT, you can use the EZ-USB FX2LP Development Kit, which includes a software development kit (SDK) and a firmware development tool (FDT). You can also use third-party tools like Keil µVision or IAR Embedded Workbench.
  • The power consumption of the CY7C68013A-56PVXCT is typically around 200-250 mA, but it can vary depending on the operating frequency, voltage, and usage scenario.
  • Yes, the CY7C68013A-56PVXCT is compatible with USB 3.0 host controllers, but it will operate at USB 2.0 speeds. To take advantage of USB 3.0 speeds, you would need a USB 3.0-capable device controller like the CYUSB3014-BZXC.
  • To troubleshoot issues with the CY7C68013A-56PVXCT, you can use tools like the Cypress USB Console, USB Debug Tool, or third-party tools like USBDeview or USBlyzer. You can also check the device's registers and configuration using the EZ-USB FX2LP Development Kit.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CY7C68013A-56PVXCT Overview

Use the download button to access the CY7C68013A-56PVXCT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CY7C6, or try a keyword search, such as Bus Controllers
