CY8C20236A-24LKXIT - Infineon

Description: CY8C20xx6A_S

Download CY8C20236A-24LKXIT Model

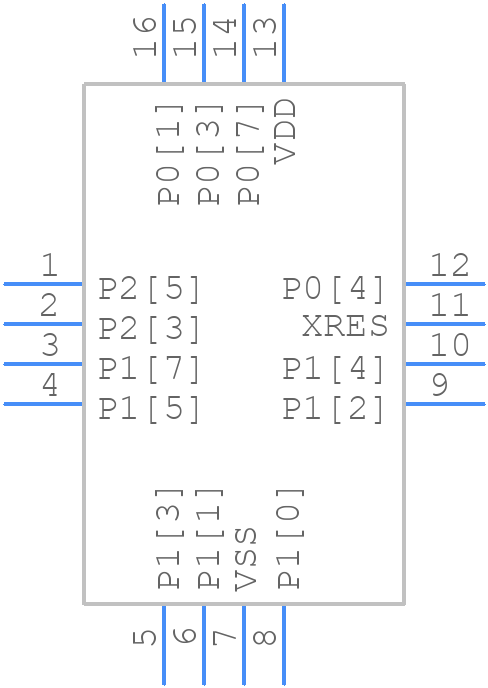

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
CY8C20236A-24LKXIT - Infineon PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 16-pin Chip On Lead (3 × 3 × 0.6 mm) LG16A/LD16A (Sawn) Package Outline, 001-09116_1
click to zoom
3D Models
CY8C20236A-24LKXIT - Infineon  - 3D model - Quad Flat No-Lead - 16-pin Chip On Lead (3 × 3 × 0.6 mm) LG16A/LD16A (Sawn) Package Outline, 001-09116_1
click to zoom

CY8C20236A-24LKXIT Details

  • Manufacturer Part Number:

    CY8C20236A-24LKXIT

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-16

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    10

  • Bit Size:

    8

  • Boundary Scan:

    NO

  • Bus Compatibility:

    USB

  • CPU Family:

    M8C

  • Clock Frequency-Max:

    25.2 MHz

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    3

  • Number of I/O Lines:

    13

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • RAM (bytes):

    1024

  • RAM (words):

    512

  • ROM (words):

    8192

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    0.6 mm

  • Speed:

    25.2 MHz

  • Supply Current-Max:

    4 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.71 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

CY8C20236A-24LKXIT Frequently Asked Questions (FAQs)
