CY8C20436A-24LQXI - Infineon

Description: CY8C20xx6A_S

Download CY8C20436A-24LQXI Model

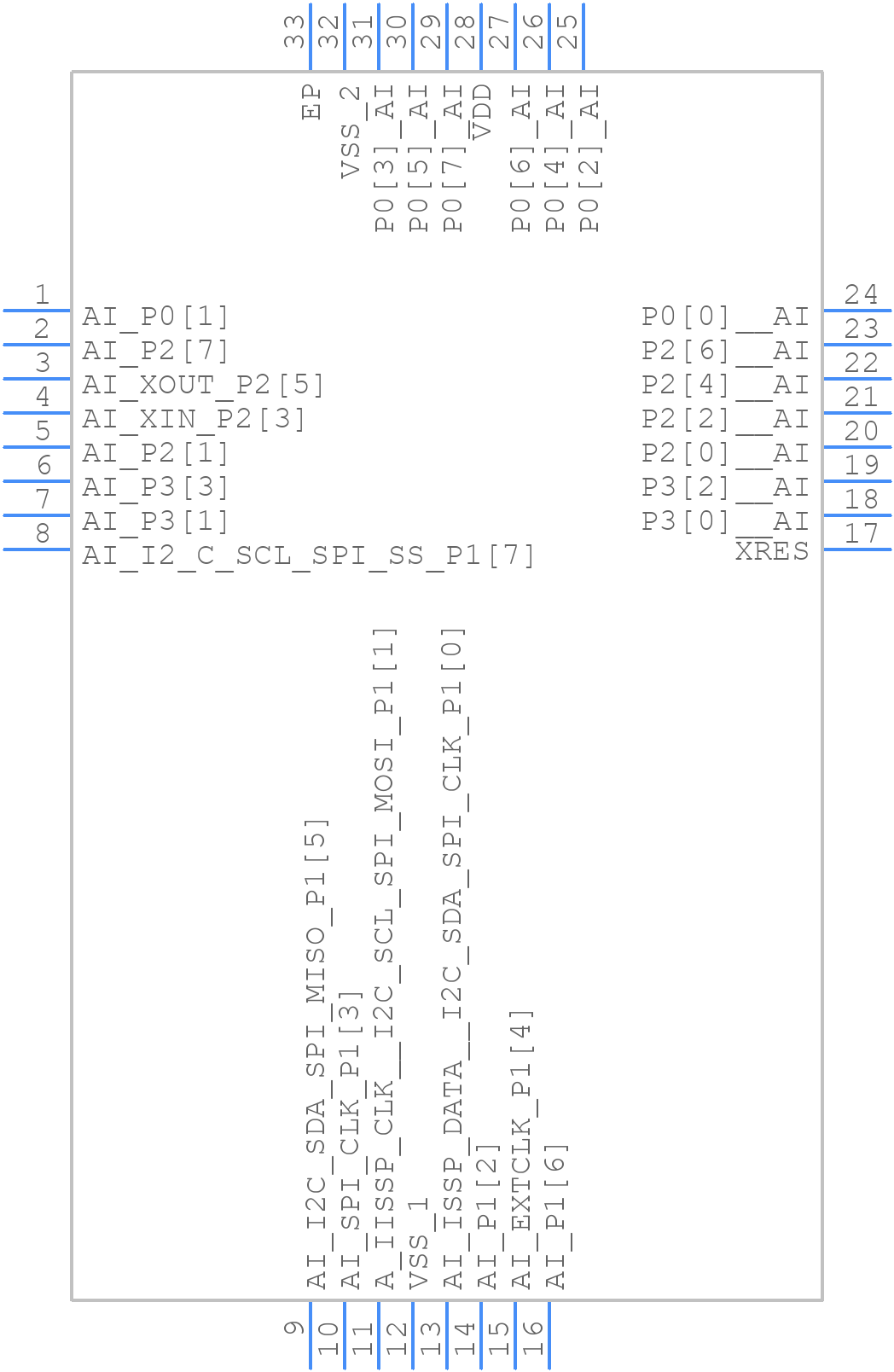

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
CY8C20436A-24LQXI - Infineon PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 32-pin QFN (5 × 5 × 0.55 mm) LQ32 3.5 × 3.5 E-Pad (Sawn)
click to zoom
3D Models
CY8C20436A-24LQXI - Infineon  - 3D model - Quad Flat No-Lead - 32-pin QFN (5 × 5 × 0.55 mm) LQ32 3.5 × 3.5 E-Pad (Sawn)
click to zoom

CY8C20436A-24LQXI Details

  • Manufacturer Part Number:

    CY8C20436A-24LQXI

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-32

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    10

  • Bit Size:

    8

  • Boundary Scan:

    NO

  • Bus Compatibility:

    USB

  • CPU Family:

    M8C

  • Clock Frequency-Max:

    25.2 MHz

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of I/O Lines:

    28

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • RAM (bytes):

    1024

  • RAM (words):

    512

  • ROM (words):

    8192

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    0.6 mm

  • Speed:

    25.2 MHz

  • Supply Current-Max:

    4 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.71 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    5 mm

CY8C20436A-24LQXI Frequently Asked Questions (FAQs)

  • The recommended crystal oscillator frequency for the CY8C20436A-24LQXI is 32.768 kHz. This frequency is used as the clock source for the internal real-time clock (RTC) and watchdog timer.
  • The GPIO pins on the CY8C20436A-24LQXI can be configured as analog or digital inputs using the Pin Configuration Register (PCR). The PCR register is used to set the pin mode, drive mode, and input buffer mode for each GPIO pin.
  • The maximum current that can be sourced or sunk by the GPIO pins on the CY8C20436A-24LQXI is 25 mA. However, it's recommended to limit the current to 10 mA or less to ensure reliable operation and prevent overheating.
  • The internal voltage regulator on the CY8C20436A-24LQXI can be used to power external components by connecting the VREG pin to the external component's power pin. The VREG pin provides a regulated 3.3V output that can source up to 50 mA of current.
  • The VBAT pin on the CY8C20436A-24LQXI is used to connect a battery or other power source to the internal real-time clock (RTC) and SRAM. This allows the RTC and SRAM to retain their data even when the main power supply is turned off.
