CY8C24423A-24PVXI - Infineon

Description: 8-bit Microcontrollers - MCU IC MCU 4K FLASH 256B SRAM

Download CY8C24423A-24PVXI Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

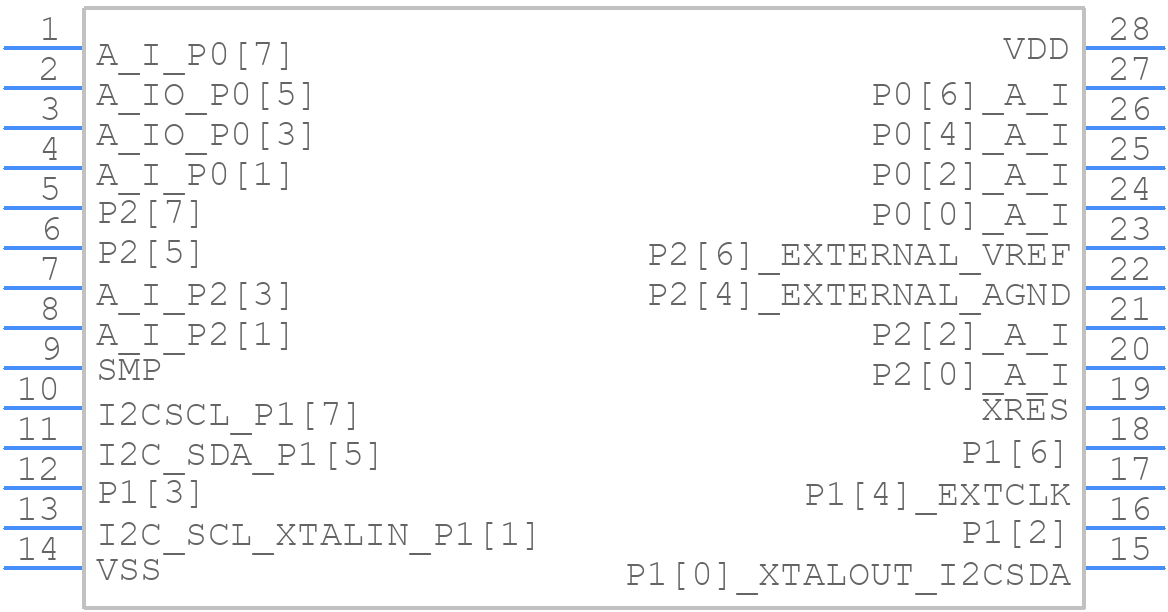

CY8C24423A-24PVXI - Infineon - PCB symbol
click to zoom
PCB Footprints

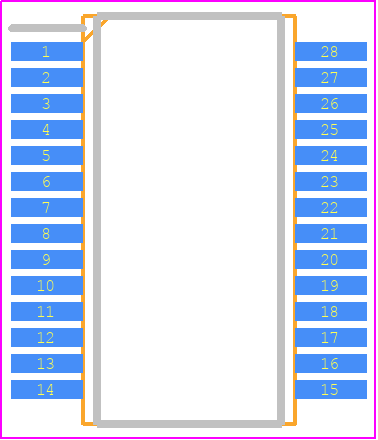

CY8C24423A-24PVXI - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - 28-Pin SOop
click to zoom
3D Models
CY8C24423A-24PVXI - Infineon - 3D model - Small Outline Packages - 28-Pin SOop
click to zoom

CY8C24423A-24PVXI Details

  • Manufacturer Part Number:

    CY8C24423A-24PVXI

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    10

  • Additional Feature:

    ALSO OPERATES AT 2.7V AND 3.3V SUPPLY

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    10.2 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP28,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2 mm

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.75 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    20

  • Width:

    5.3 mm

  • uPs/uCs/Peripheral ICs Type:

    PROGRAMMABLE SoC

CY8C24423A-24PVXI Frequently Asked Questions (FAQs)

  • The recommended oscillator crystal frequency for the CY8C24423A-24PVXI is 32.768 kHz. This frequency is used as the clock source for the internal oscillator and is suitable for most applications.
  • The GPIO pins on the CY8C24423A-24PVXI can be configured as analog or digital inputs using the Pin Configuration Register (PCR). The PCR register is used to set the pin mode, drive mode, and input buffer mode for each GPIO pin.
  • The maximum current that can be sourced or sunk by a GPIO pin on the CY8C24423A-24PVXI is 25 mA. However, it's recommended to limit the current to 10 mA or less to ensure reliable operation and to prevent overheating.
  • The internal voltage regulator on the CY8C24423A-24PVXI can be used to power external components by connecting the VREG pin to the external component's power pin. The internal voltage regulator is enabled by setting the VREG_EN bit in the System Configuration Register (SCR).
  • The VBAT pin on the CY8C24423A-24PVXI is used to connect a battery or a supercapacitor to store the device's configuration and clock data when the main power supply is removed. The VBAT pin should be connected to a battery or a supercapacitor with a voltage range of 1.9 V to 3.6 V.
