CY8C24493-24LTXI footprint, schematic symbol and 3D model by Infineon

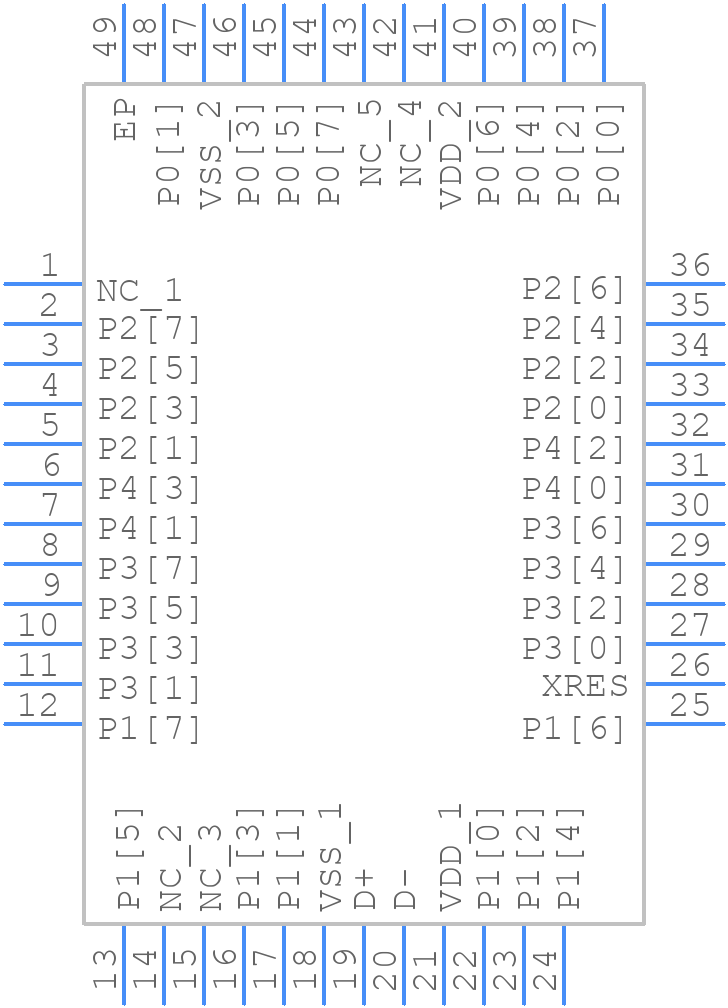

Symbol

click to zoom

PCB Footprints

CY8C24493-24LTXI - Infineon PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - . 48-pin QFN (7 × 7 × 1.0 mm)

click to zoom

3D Models

CY8C24493-24LTXI - Infineon - 3D model - Quad Flat No-Lead - . 48-pin QFN (7 × 7 × 1.0 mm)

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for CY8C24493-24LTXI
Part Number CY8C24493-24LTXI
Manufacturer Infineon
Pin Count 49
Part Category Integrated Circuit
Package Category Quad Flat No-Lead
Footprint Name Quad Flat No-Lead - . 48-pin QFN (7 × 7 × 1.0 mm)
Released Date Oct 16, 2024
Last Modified Date Oct 16, 2024 7:03 PM UTC
Pinout / Pin List Click Here (Member Only)

CY8C24493-24LTXI Details

Manufacturer Part Number:
CY8C24493-24LTXI
Rohs Code:
Yes
Part Life Cycle Code:
Active
HTS Code:
8542.31.00.30
Manufacturer:
Infineon Technologies AG
YTEOL:
3.15
JESD-609 Code:
e4
Moisture Sensitivity Level:
3
Qualification Status:
Not Qualified
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
uPs/uCs/Peripheral ICs Type:
PROGRAMMABLE SoC

Trust Checks

Expert Contribution

System Verified

Community Approved

CY8C24493-24LTXI Overview

Use the download button to access the CY8C24493-24LTXI schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like CY8C2, or try a keyword search, such as Multifunction Peripherals
