CY8C27243-24PVXI - Infineon

Description: 8-bit Microcontrollers - MCU IC MCU 16K FLSH 256B SRAM

Download CY8C27243-24PVXI Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

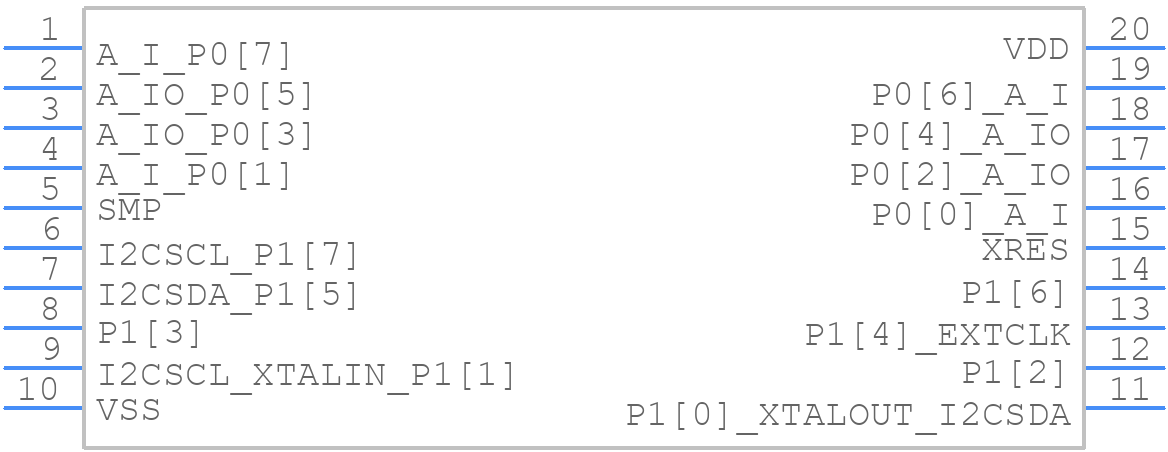

CY8C27243-24PVXI - Infineon - PCB symbol
click to zoom
PCB Footprints
CY8C27243-24PVXI - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - 20-pin SSOP (210 Mils) Package Outline, 51-85077
click to zoom
3D Models
CY8C27243-24PVXI - Infineon - 3D model - Small Outline Packages - 20-pin SSOP (210 Mils) Package Outline, 51-85077
click to zoom

CY8C27243-24PVXI Details

  • Manufacturer Part Number:

    CY8C27243-24PVXI

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    10

  • JESD-609 Code:

    e4

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Time@Peak Reflow Temperature-Max (s):

    30

  • uPs/uCs/Peripheral ICs Type:

    PROGRAMMABLE SoC

CY8C27243-24PVXI Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the CY8C27243-24PVXI is 24 MHz.
  • The CY8C27243-24PVXI has 16 KB of flash memory.
  • The maximum current consumption of the CY8C27243-24PVXI is 20 mA at 24 MHz.
  • Yes, the CY8C27243-24PVXI has a 12-bit, 12-channel analog-to-digital converter (ADC).
  • Yes, the CY8C27243-24PVXI has multiple low-power modes, including Sleep, Hibernate, and Deep Sleep, to reduce power consumption.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CY8C27243-24PVXI Overview

Use the download button to access the CY8C27243-24PVXI schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CY8C2, or try a keyword search, such as Multifunction Peripherals
