CY8C27443-24PVXI - Infineon

Description: CYPRESS SEMICONDUCTOR - CY8C27443-24PVXI - MCU, 8BIT, PSOC1, 24MHZ, SSOP-28

Download CY8C27443-24PVXI Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

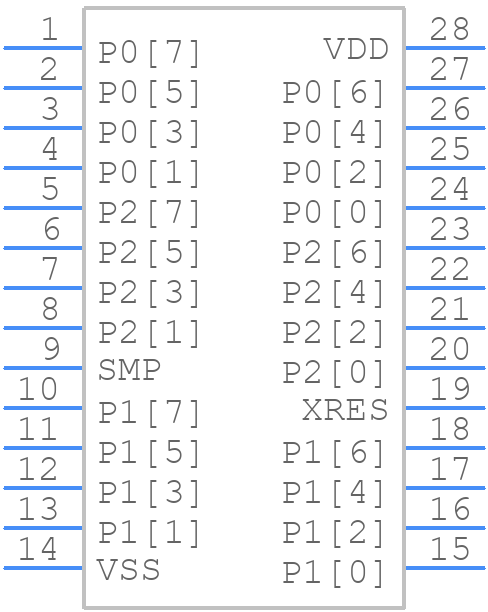

CY8C27443-24PVXI - Infineon - PCB symbol
click to zoom
PCB Footprints
CY8C27443-24PVXI - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - 28-pin SSOP-1
click to zoom
3D Models
CY8C27443-24PVXI - Infineon - 3D model - Small Outline Packages - 28-pin SSOP-1
click to zoom

CY8C27443-24PVXI Details

  • Manufacturer Part Number:

    CY8C27443-24PVXI

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    10

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Time@Peak Reflow Temperature-Max (s):

    20

  • uPs/uCs/Peripheral ICs Type:

    PROGRAMMABLE SoC

CY8C27443-24PVXI Frequently Asked Questions (FAQs)

  • The CY8C27443-24PVXI can operate in a temperature range of -40°C to +85°C.
  • The clock source can be configured using the Clock Control Register (CLK_CR). The clock source can be set to internal (IMO), external (ECO), or PLL (Phase-Locked Loop).
  • The maximum frequency of the CPU is 24 MHz.
  • The ADC can be configured using the ADC Control Register (ADC_CR). The ADC can be triggered by a software command or by an external signal. The ADC result can be read from the ADC Result Register (ADC_RES).
  • Yes, the CY8C27443-24PVXI can operate with a 3.3V power supply. However, the voltage regulator (VREG) must be enabled to regulate the internal voltage to 1.8V.
