CY8C27443-24SXI - Infineon

Description: Micro, 8-Bit 256b RAM CY8C27443-24SXI Cypress Semiconductor CY8C27443-24SXI, System-On-Chip CMOS 3 → 5.25 V 28-Pin SOIC

Download CY8C27443-24SXI Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

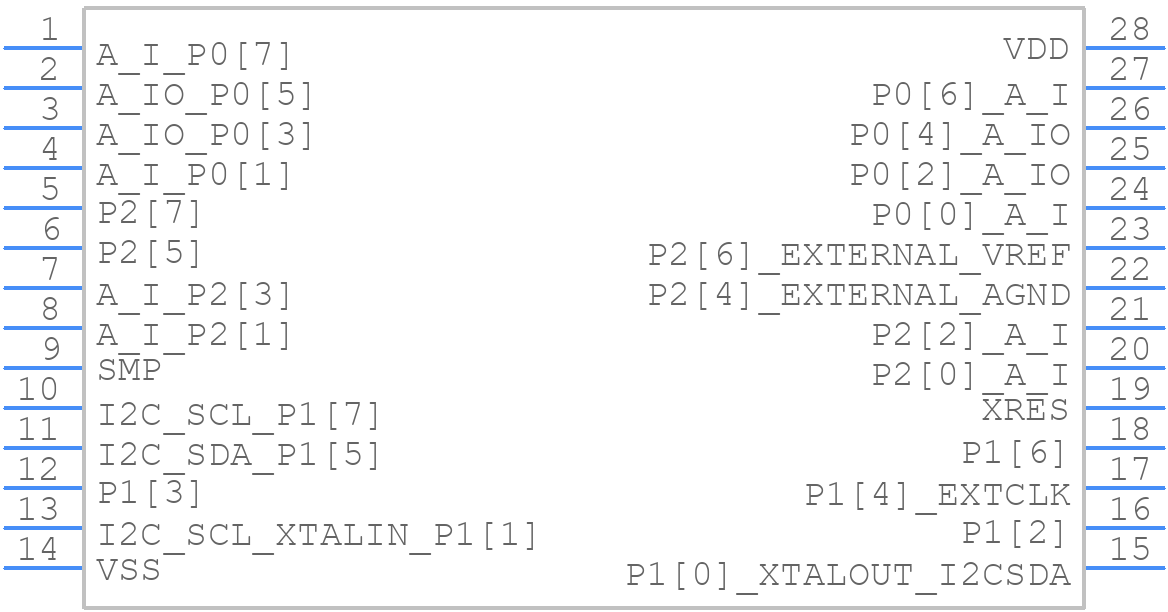

Symbol
CY8C27443-24SXI - Infineon - PCB symbol
click to zoom

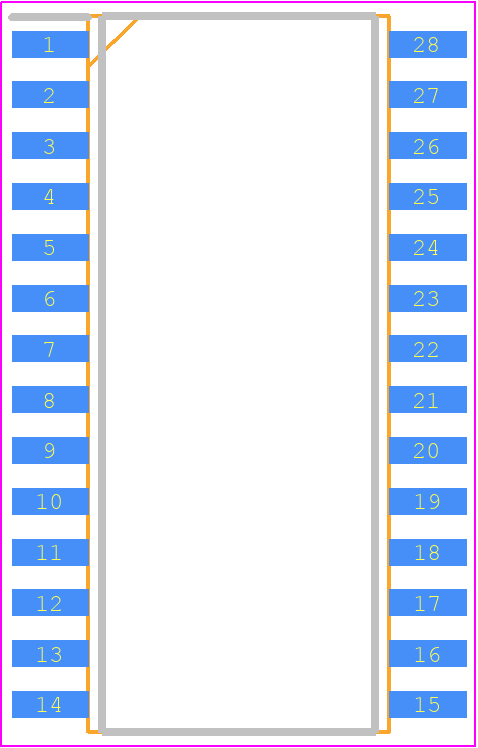

PCB Footprints
CY8C27443-24SXI - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - 28-Pin SOIC-ren1
click to zoom
3D Models
CY8C27443-24SXI - Infineon - 3D model - Small Outline Packages - 28-Pin SOIC-ren1
click to zoom

CY8C27443-24SXI Details

  • Manufacturer Part Number:

    CY8C27443-24SXI

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    10

  • JESD-609 Code:

    e4

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Time@Peak Reflow Temperature-Max (s):

    20

  • uPs/uCs/Peripheral ICs Type:

    PROGRAMMABLE SoC

CY8C27443-24SXI Frequently Asked Questions (FAQs)

  • The CY8C27443-24SXI can operate in a temperature range of -40°C to +85°C.
  • The clock source can be configured using the Clock Control Register (CLK_CR). The clock source can be set to internal (IMO), external (ECO), or PLL (Phase-Locked Loop).
  • The maximum frequency of the CPU is 24 MHz.
  • The ADC can be configured using the ADC Control Register (ADC_CR). The ADC can be triggered by a software trigger or an external trigger. The ADC result can be read from the ADC Result Register (ADC_RES).
  • Yes, the CY8C27443-24SXI can operate with a 3.3V power supply. However, the voltage regulator (VREG) must be enabled to regulate the internal voltage to 1.8V.
