CY8C27543-24AXI - Infineon

Description: 8-bit Microcontrollers - MCU IC MCU 16K FLSH 256B SRAM

Download CY8C27543-24AXI Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

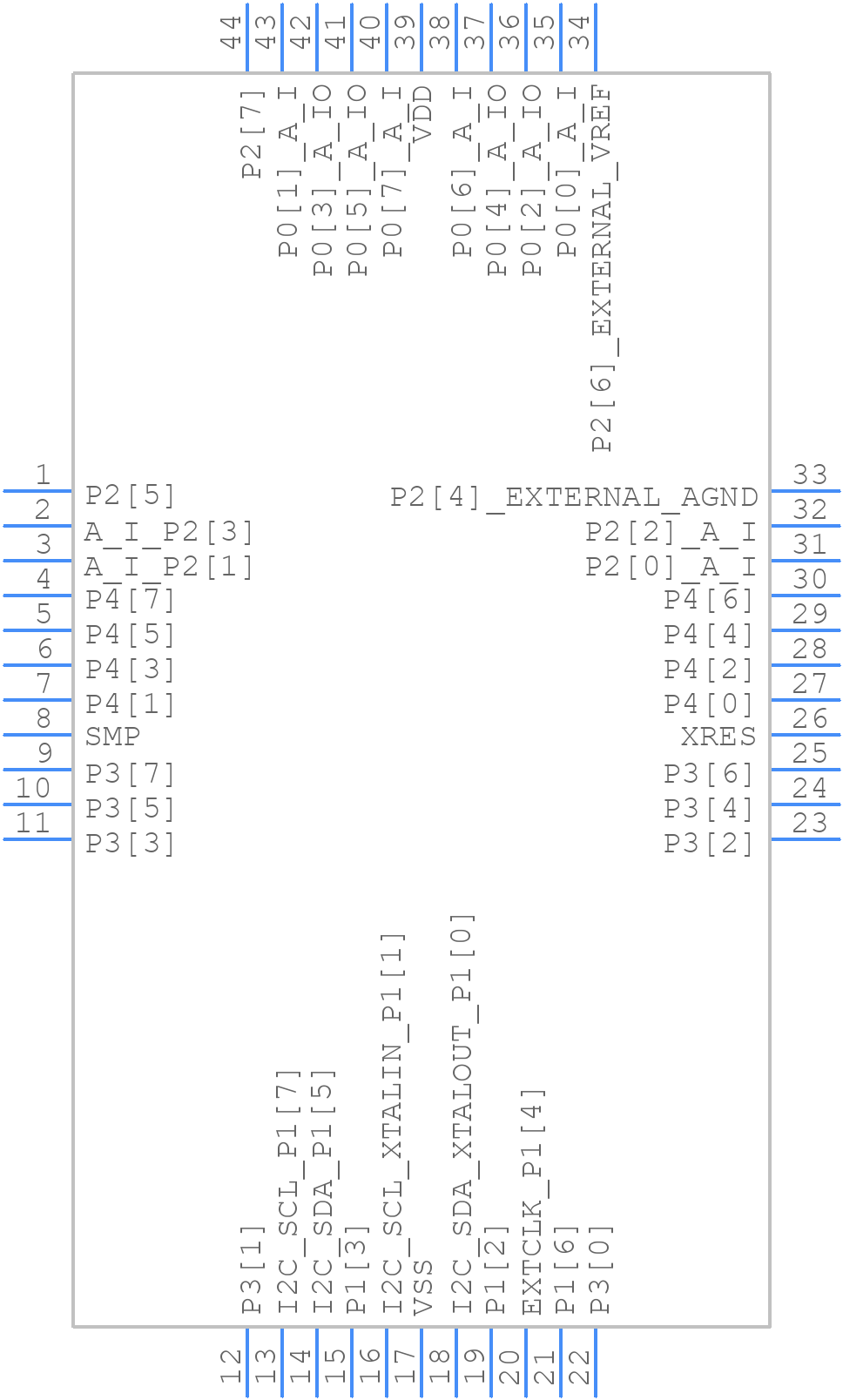

CY8C27543-24AXI - Infineon - PCB symbol
click to zoom
PCB Footprints
CY8C27543-24AXI - Infineon PCB footprint - Quad Flat Packages - Quad Flat Packages - 44-pin TQFP-ren1
click to zoom
3D Models
CY8C27543-24AXI - Infineon - 3D model - Quad Flat Packages - 44-pin TQFP-ren1
click to zoom

CY8C27543-24AXI Details

  • Manufacturer Part Number:

    CY8C27543-24AXI

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8542.31.00.30

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    10

  • JESD-609 Code:

    e4

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Time@Peak Reflow Temperature-Max (s):

    20

  • uPs/uCs/Peripheral ICs Type:

    PROGRAMMABLE SoC

CY8C27543-24AXI Frequently Asked Questions (FAQs)

  • The CY8C27543-24AXI can operate in a temperature range of -40°C to +85°C.
  • The clock source can be configured using the Clock Control Register (CLK_CR). The clock source can be set to internal (IMO), external (ECO), or PLL (Phase-Locked Loop).
  • The maximum frequency of the CPU is 24 MHz.
  • The ADC can be configured using the ADC Control Register (ADC_CR). The ADC can be triggered by a software trigger or an external trigger. The ADC result can be read from the ADC Result Register (ADC_RES).
  • Yes, the CY8C27543-24AXI can operate with a power supply voltage of 2.4V to 3.6V, making it compatible with 3.3V power supplies.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CY8C27543-24AXI Overview

Use the download button to access the CY8C27543-24AXI schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CY8C2, or try a keyword search, such as Other uPs/uCs/Peripheral ICs
