CY8C28433-24PVXI - Infineon

Description: Cypress Semiconductor CY8C28433-24PVXI, System-On-Chip CMOS 3 → 5.25 V 28-Pin SSOP

Download CY8C28433-24PVXI Model

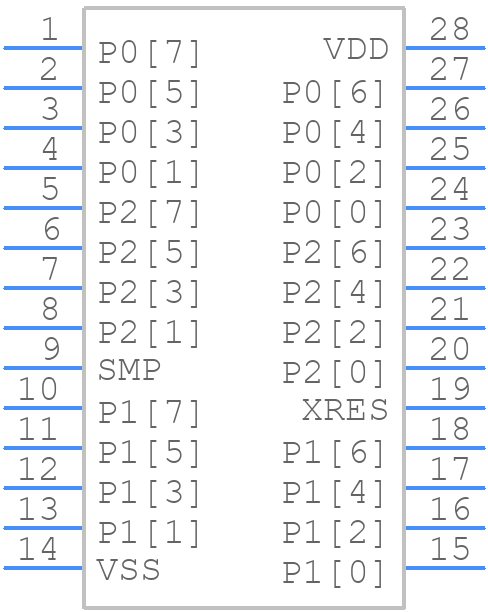

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
CY8C28433-24PVXI - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - Plastic SSOP-28P
click to zoom
3D Models
CY8C28433-24PVXI - Infineon  - 3D model - Small Outline Packages - Plastic SSOP-28P
click to zoom

CY8C28433-24PVXI Details

  • Manufacturer Part Number:

    CY8C28433-24PVXI

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    3.15

  • JESD-609 Code:

    e4

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Time@Peak Reflow Temperature-Max (s):

    20

  • uPs/uCs/Peripheral ICs Type:

    PROGRAMMABLE SoC

CY8C28433-24PVXI Frequently Asked Questions (FAQs)

  • The recommended oscillator crystal frequency for the CY8C28433-24PVXI is 32.768 kHz. This frequency is used as the clock source for the internal real-time clock (RTC) and watchdog timer.
  • To configure the ADC for optimal performance, ensure that the analog input pins are properly biased, the ADC clock frequency is set to 1.5 MHz or less, and the ADC gain is set to 1x. Additionally, use the ADC's built-in averaging feature to reduce noise and increase resolution.
  • The maximum current that can be sourced or sunk by the GPIO pins of the CY8C28433-24PVXI is 25 mA. However, it's recommended to limit the current to 10 mA or less to ensure reliable operation and prevent overheating.
  • To implement a reliable and efficient I2C communication protocol, ensure that the I2C clock frequency is set to 100 kHz or less, use a pull-up resistor on the SCL and SDA lines, and implement a timeout mechanism to detect and recover from bus errors.
  • The minimum operating temperature range for the CY8C28433-24PVXI is -40°C, and the maximum operating temperature range is 85°C. Operating the device outside of this range may affect its performance and reliability.
