CY8C28645-24LTXI - Infineon

Description: CY8C28645-24LTXI, System-On-Chip Microcontroller CMOS 3 → 5.25 V 44-Pin QFN EP

Download CY8C28645-24LTXI Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

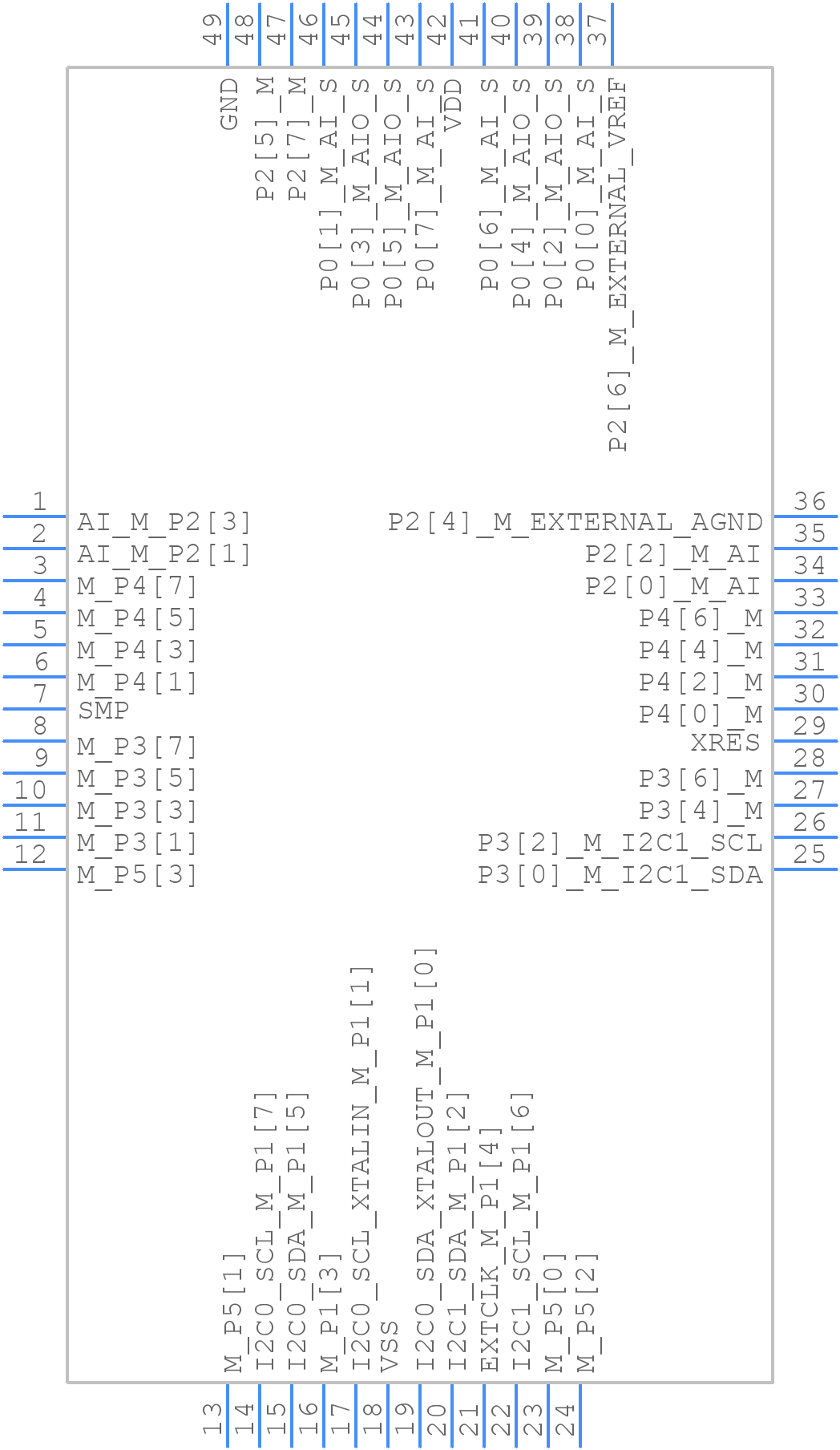

CY8C28645-24LTXI - Infineon - PCB symbol
click to zoom
PCB Footprints
CY8C28645-24LTXI - Infineon PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CY8C28645-24LTXI
click to zoom
3D Models
CY8C28645-24LTXI - Infineon - 3D model - Quad Flat No-Lead - CY8C28645-24LTXI
click to zoom

CY8C28645-24LTXI Details

  • Manufacturer Part Number:

    CY8C28645-24LTXI

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    10

  • JESD-609 Code:

    e4

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Time@Peak Reflow Temperature-Max (s):

    20

  • uPs/uCs/Peripheral ICs Type:

    PROGRAMMABLE SoC

CY8C28645-24LTXI Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for CY8C28645-24LTXI is -40°C to +85°C.
  • The clock source for CY8C28645-24LTXI can be configured using the Clock Control Register (CLK_CR). You can choose between internal oscillator, external clock, or PLL clock source.
  • The maximum current consumption of CY8C28645-24LTXI is 25mA at 24MHz frequency and 3.3V supply voltage.
  • CY8C28645-24LTXI has several low-power modes, including Sleep, Hibernate, and Stop modes. These modes can be implemented using the Power Mode Register (PMR) and the Sleep Timer Register (STMR).
  • The maximum frequency of the I2C interface in CY8C28645-24LTXI is 400 kHz.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CY8C28645-24LTXI Overview

Use the download button to access the CY8C28645-24LTXI schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CY8C2, or try a keyword search, such as Multifunction Peripherals
