Part Image

CY8C29466-24SXI - Infineon

Description: 28-Pin PSoC, 32K Flash, 2K bytes RAM CY8C29466-24SXI, System-On-Chip Microcontroller CMOS 3 ??? 5.25 V 28-Pin SOIC

Download CY8C29466-24SXI Model

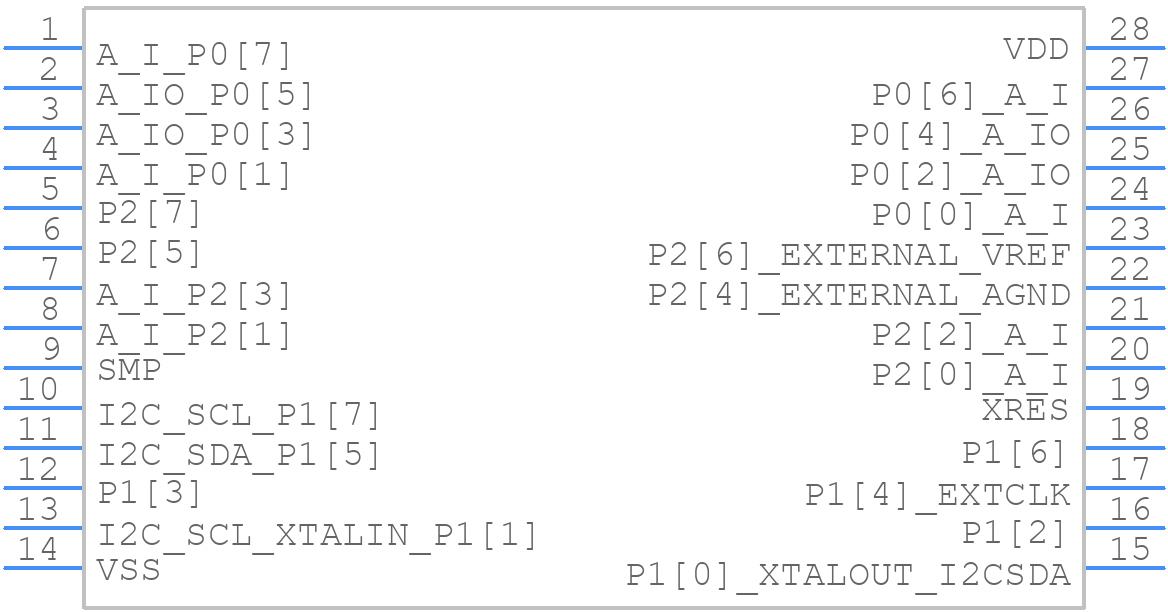

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

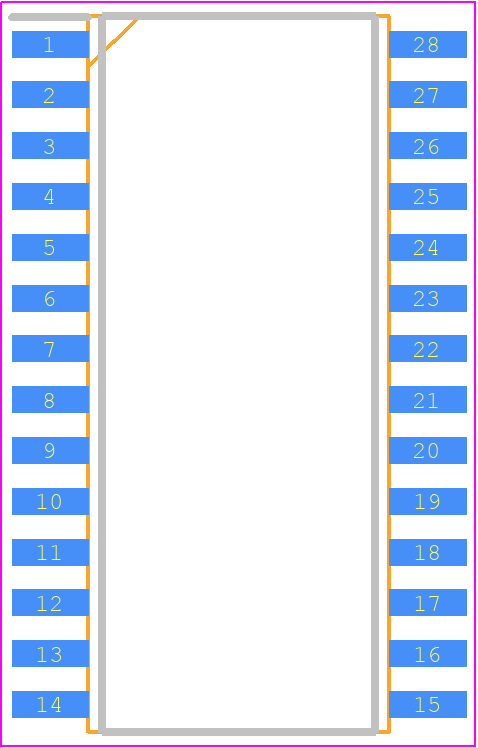

CY8C29466-24SXI - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - 28 pin SOIC S21
click to zoom
3D Models
CY8C29466-24SXI - Infineon  - 3D model - Small Outline Packages - 28 pin SOIC S21
click to zoom

CY8C29466-24SXI Details

  • Manufacturer Part Number:

    CY8C29466-24SXI

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    10

  • Additional Feature:

    ALSO OPERATES AT 5V SUPPLY

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e4

  • Length:

    17.905 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP28,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.67 mm

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    20

  • Width:

    7.505 mm

  • uPs/uCs/Peripheral ICs Type:

    PROGRAMMABLE SoC

CY8C29466-24SXI Frequently Asked Questions (FAQs)

  • The CY8C29466-24SXI can operate in a temperature range of -40°C to +85°C.
  • The clock source can be configured using the Clock Control Register (CLK_CR). The internal main oscillator (IMO) is the default clock source, but it can be changed to an external clock source or the internal low-speed oscillator (ILO) using the CLK_CR register.
  • The VCCD pin is the power supply pin for the digital core, while the VCCA pin is the power supply pin for the analog circuits. Both pins should be connected to a 1.8V to 5.5V power supply.
  • The CapSense feature can be used by configuring the CapSense blocks and using the CapSense API provided in the PSoC Creator software. The CapSense blocks can be configured to detect changes in capacitance on specific pins.
  • The maximum current that can be sourced or sunk by the GPIO pins is 25 mA.
