- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for CY8C3245PVI-150
- Part Number CY8C3245PVI-150
- Manufacturer Infineon
- Pin Count 48
- Part Category Integrated Circuit
- Package Category Small Outline Packages

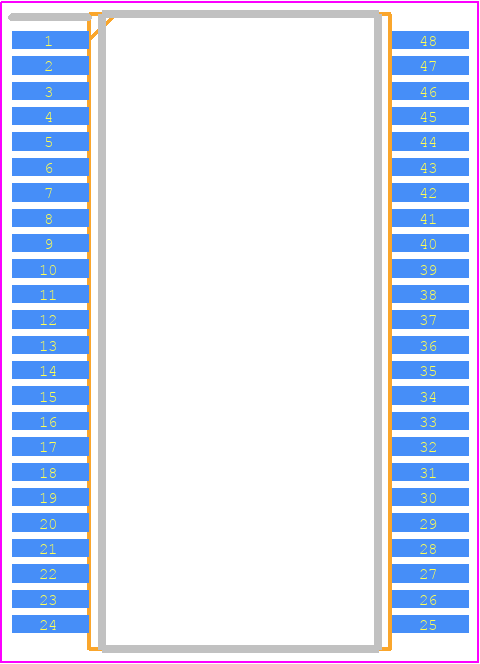

- Footprint Name Small Outline Packages - 48-pin SSOP (300mils)_inches
- Released Date Jan 18, 2021
- Last Modified Date Jan 25, 2024 9:25 PM UTC
- Pinout / Pin List Click Here (Member Only)
CY8C3245PVI-150 Details
-
Manufacturer Part Number:
CY8C3245PVI-150
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
SSOP-48
-
HTS Code:
8542.31.00.30
-
Manufacturer:
Infineon Technologies AG
-
YTEOL:
3.15
-
JESD-30 Code:
R-PDSO-G48
-
JESD-609 Code:
e4
-
Length:
15.875 mm
-
Moisture Sensitivity Level:
3
CY8C3245PVI-150 Frequently Asked Questions (FAQs)
-
The recommended crystal oscillator frequency for the CY8C3245PVI-150 is 24 MHz or 32 kHz. However, it's essential to consult the datasheet and application notes for specific configuration and usage guidelines.
-
The internal clock source can be configured using the Clock Control Register (CLK_CTRL). You need to set the clock source, divider, and multiplier values according to your application requirements. Refer to the datasheet and technical reference manual for detailed information.
-
The maximum current consumption of the CY8C3245PVI-150 depends on the operating mode, frequency, and peripheral usage. According to the datasheet, the maximum current consumption is around 20 mA at 50 MHz with all peripherals enabled. However, this value can vary depending on your specific application.
-
The CY8C3245PVI-150 has several low-power modes, including Sleep, Hibernate, and Deep Sleep. You can implement these modes by configuring the Power Mode Control Register (PMC) and using the corresponding APIs in your firmware. Refer to the datasheet and application notes for detailed information.
-
The CY8C3245PVI-150 has an operating temperature range of -40°C to +85°C. However, it's essential to consult the datasheet and reliability reports for specific temperature-related specifications and guidelines.
Trust Checks
Community Provided
System Verified
Community Approved
CY8C3245PVI-150 Overview

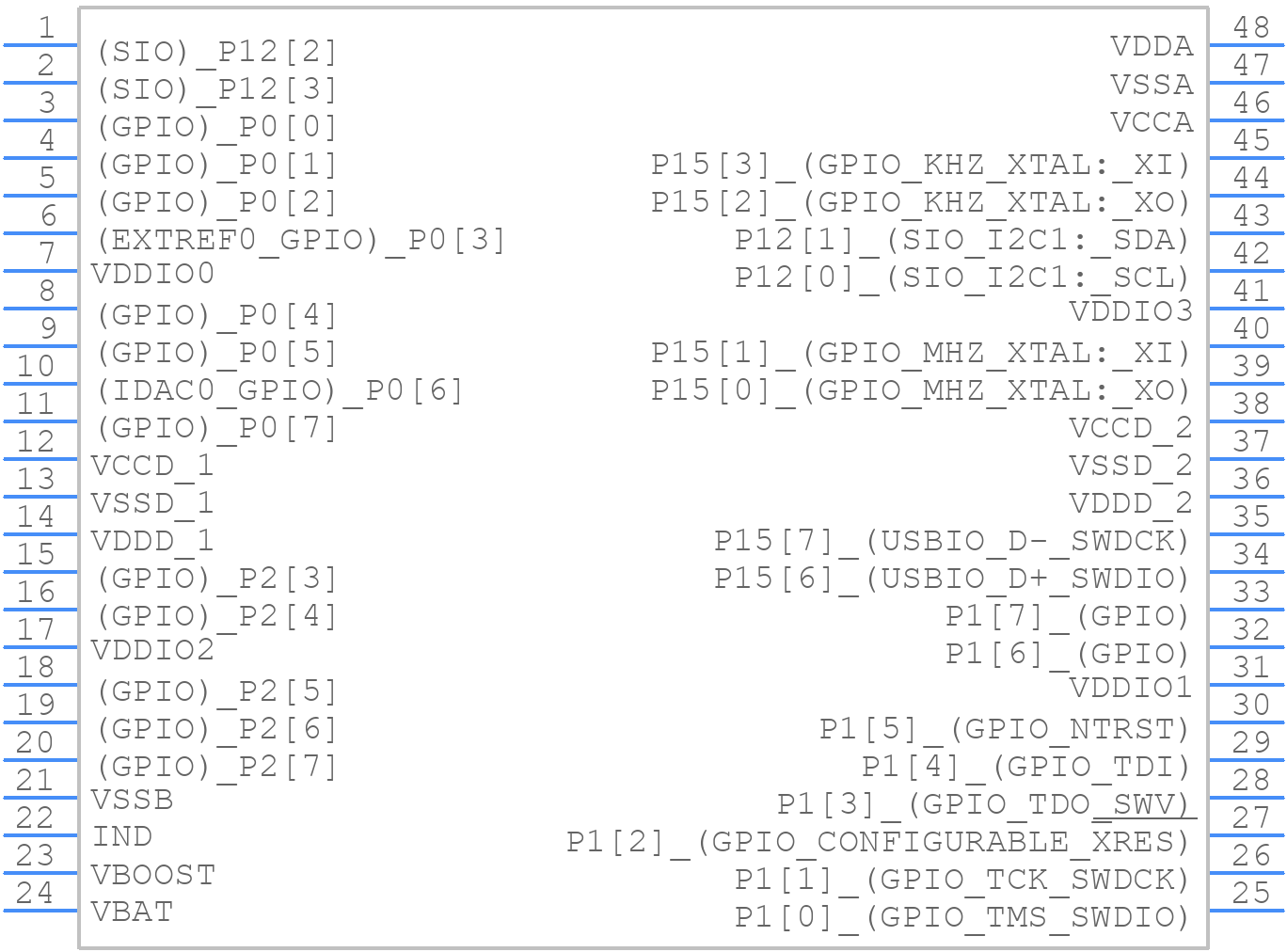

Use the download button to access the CY8C3245PVI-150 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CY8C3,
or try a keyword search, such as Other uPs/uCs/Peripheral ICs
