CY8C3866AXI-040 - Infineon

Description: Programmable System-on-Chip

Download CY8C3866AXI-040 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

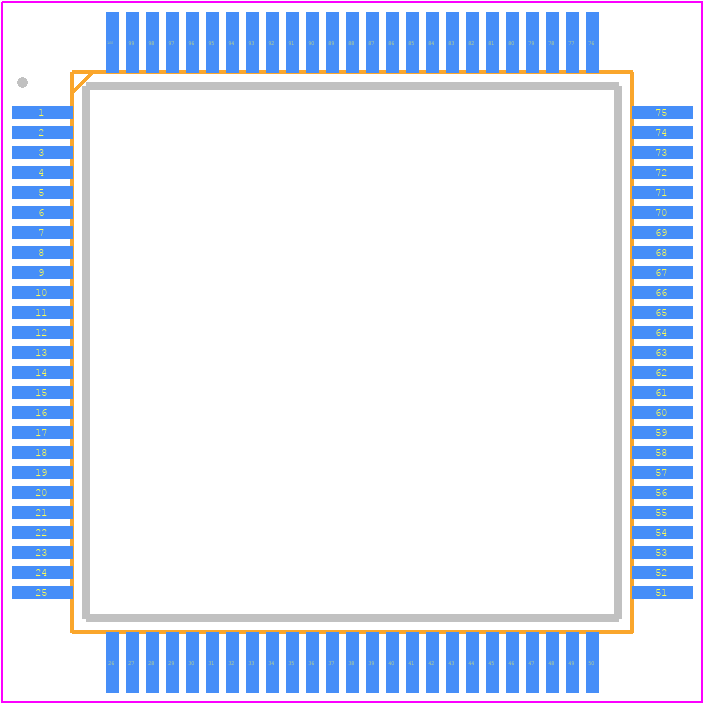

CY8C3866AXI-040 - Infineon PCB footprint - Quad Flat Packages - Quad Flat Packages - 100-pin TQFP (14 × 14 × 1.4 mm) HEIGHT 1.6
click to zoom
3D Models
CY8C3866AXI-040 - Infineon  - 3D model - Quad Flat Packages - 100-pin TQFP (14 × 14 × 1.4 mm) HEIGHT 1.6
click to zoom

CY8C3866AXI-040 Details

  • Manufacturer Part Number:

    CY8C3866AXI-040

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TQFP-100

  • Country Of Origin:

    Mainland China, Philippines, Taiwan

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    7

  • JESD-30 Code:

    S-PQFP-G100

  • JESD-609 Code:

    e4

  • Length:

    14 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    100

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFQFP

  • Package Equivalence Code:

    QFP100,.63SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.6 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.71 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    14 mm

  • uPs/uCs/Peripheral ICs Type:

    PROGRAMMABLE SoC

CY8C3866AXI-040 Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the CY8C3866AXI-040 is 67 MHz.
  • The CY8C3866AXI-040 has 64 KB of flash memory.
  • The maximum current consumption of the CY8C3866AXI-040 is 20 mA at 3.3V and 67 MHz.
  • Yes, the CY8C3866AXI-040 has a built-in USB 2.0 full-speed interface.
  • The operating voltage range of the CY8C3866AXI-040 is 2.4V to 3.6V.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CY8C3866AXI-040 Overview

Use the download button to access the CY8C3866AXI-040 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CY8C3, or try a keyword search, such as Other uPs/uCs/Peripheral ICs

Parts related to CY8C3866AXI-040

Showing 0 results
