CY8C4013LQI-411T - Infineon

Description: ARM Microcontrollers - MCU 8KB Flash 2KB SRAM PSoC 4

Download CY8C4013LQI-411T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

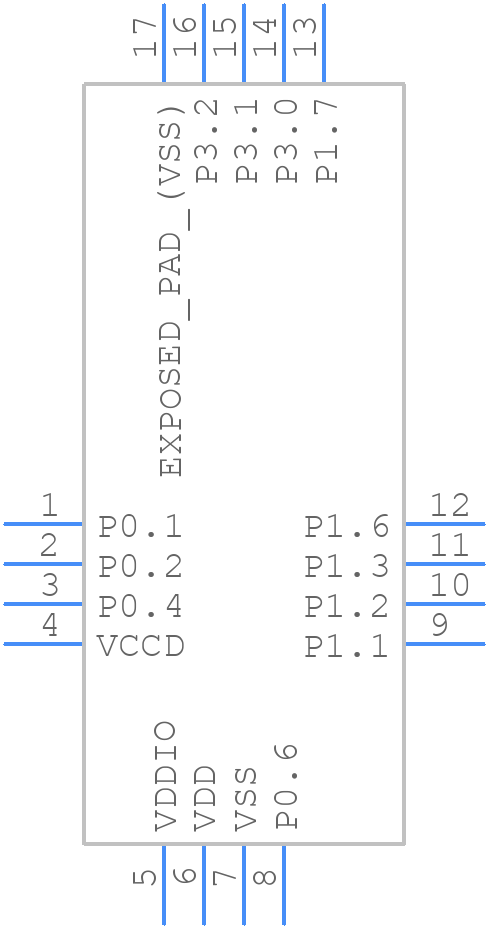

CY8C4013LQI-411T - Infineon - PCB symbol
click to zoom
PCB Footprints
CY8C4013LQI-411T - Infineon PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 16-pin QFN Package EPAD (sawn)
click to zoom
3D Models
CY8C4013LQI-411T - Infineon - 3D model - Quad Flat No-Lead - 16-pin QFN Package EPAD (sawn)
click to zoom

CY8C4013LQI-411T Details

  • Manufacturer Part Number:

    CY8C4013LQI-411T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-16

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    8

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.6 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.71 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    3 mm

  • uPs/uCs/Peripheral ICs Type:

    PROGRAMMABLE SoC

CY8C4013LQI-411T Frequently Asked Questions (FAQs)

  • The recommended crystal oscillator frequency for the CY8C4013LQI-411T is 24 MHz, but it can also operate with a frequency range of 12 MHz to 48 MHz.
  • The GPIO pins can be configured as analog or digital inputs using the Pin Configuration Register (PCR) and the Analog Mux Register (AMUX). The PCR sets the pin as an analog or digital input, while the AMUX selects the analog input channel.
  • The maximum current that can be sourced by the GPIO pins is 4 mA, and the maximum current that can be sunk is 8 mA. However, it's recommended to limit the current to 2 mA for sourcing and 4 mA for sinking to ensure reliable operation.
  • The CY8C4013LQI-411T has a built-in watchdog timer that can be enabled and configured using the Watchdog Timer Control Register (WDT_CTRL). The watchdog timer can be set to timeout after a specified period, and it can be reset using the WDT_RESET register.
  • The power consumption of the CY8C4013LQI-411T varies depending on the operating mode. In active mode, the current consumption is around 2.5 mA at 3.3V and 24 MHz. In sleep mode, the current consumption is around 1.5 μA at 3.3V. In hibernate mode, the current consumption is around 0.5 μA at 3.3V.
