CY8C4014LQI-421 - Infineon

Description: Cypress Semiconductor CY8C4014LQI-421, 32bit Microcontroller, CY8C4014, 16MHz, 16 kB Flash, 16-Pin QFN

Download CY8C4014LQI-421 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

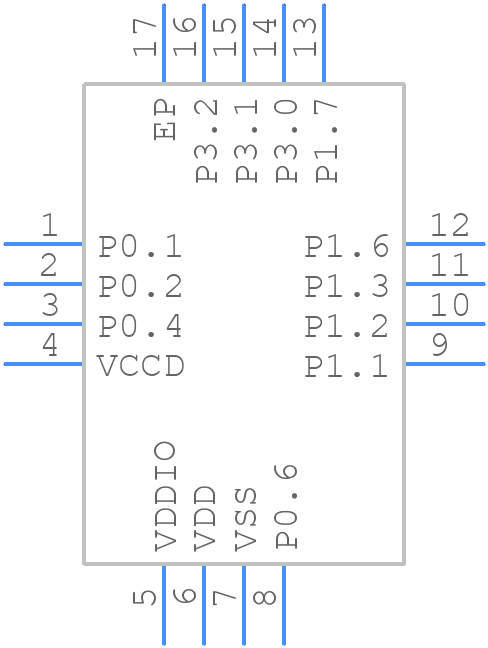

CY8C4014LQI-421 - Infineon - PCB symbol
click to zoom
PCB Footprints
CY8C4014LQI-421 - Infineon PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CY8C4014LQI-421
click to zoom
3D Models
CY8C4014LQI-421 - Infineon - 3D model - Quad Flat No-Lead - CY8C4014LQI-421
click to zoom

CY8C4014LQI-421 Details

  • Manufacturer Part Number:

    CY8C4014LQI-421

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-16

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    8

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.6 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.8 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

  • uPs/uCs/Peripheral ICs Type:

    PROGRAMMABLE SoC

CY8C4014LQI-421 Frequently Asked Questions (FAQs)

  • The recommended crystal oscillator frequency for the CY8C4014LQI-421 is 24 MHz, 32 kHz, or 32.768 kHz, depending on the application requirements.
  • The GPIO pins can be configured for analog or digital operation using the Pin Configuration Register (PCR) and the Analog Mux Register (AMUX). Refer to the device's TRM (Technical Reference Manual) for more information.
  • The maximum current that can be sourced or sunk by the GPIO pins is 25 mA, but this value can be limited by the device's power consumption and thermal dissipation capabilities.
  • The CY8C4014LQI-421 has a built-in watchdog timer that can be enabled and configured using the Watchdog Timer Control Register (WDT_CTRL). The watchdog timer can be used to reset the device in case of a software or hardware fault.
  • The minimum operating temperature range for the CY8C4014LQI-421 is -40°C, and the maximum operating temperature range is 85°C.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CY8C4014LQI-421 Overview

Use the download button to access the CY8C4014LQI-421 schematic symbol, PCB footprint, and 3D model.
