Technical Content
Part Image

CY8C4014SXI-421 - Infineon

Description: ARM Microcontrollers - MCU 16KB Flash 2KB SRAM PSoC 4

Download CY8C4014SXI-421 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

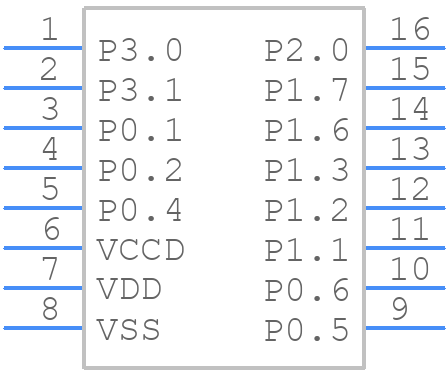

Symbol
CY8C4014SXI-421 - Infineon - PCB symbol
click to zoom
PCB Footprints
CY8C4014SXI-421 - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - 16-pin (150-mil) SOIC Package Outline
click to zoom
3D Models
CY8C4014SXI-421 - Infineon - 3D model - Small Outline Packages - 16-pin (150-mil) SOIC Package Outline
click to zoom

CY8C4014SXI-421 Details

  • Manufacturer Part Number:

    CY8C4014SXI-421

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-16

  • HTS Code:

    8542.31.00.30

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    8

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.727 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.8 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

  • uPs/uCs/Peripheral ICs Type:

    PROGRAMMABLE SoC

CY8C4014SXI-421 Frequently Asked Questions (FAQs)

  • The recommended crystal oscillator frequency for the CY8C4014SXI-421 is 32.768 kHz. This frequency is used as the clock source for the internal real-time clock (RTC) and watchdog timer.
  • The GPIO pins on the CY8C4014SXI-421 can be configured as analog or digital inputs using the Pin Configuration Register (PCR). The PCR register is used to set the pin mode, drive mode, and input buffer mode for each GPIO pin.
  • The maximum current that can be sourced or sunk by the GPIO pins on the CY8C4014SXI-421 is 25 mA. However, it is recommended to limit the current to 10 mA or less to ensure reliable operation and to prevent overheating.
  • The internal voltage regulator on the CY8C4014SXI-421 can be used to power external components by connecting the VREG pin to the external component's power pin. The internal voltage regulator is enabled by setting the VREG_EN bit in the System Control Register (SCR).
  • The VBAT pin on the CY8C4014SXI-421 is used to connect a battery or other power source to the internal real-time clock (RTC) and other low-power modes. The VBAT pin is used to maintain the RTC and other low-power modes even when the main power supply is turned off.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CY8C4014SXI-421 Overview

Use the download button to access the CY8C4014SXI-421 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CY8C4, or try a keyword search, such as Other uPs/uCs/Peripheral ICs
