CY8C4014SXI-421T - Infineon

Description: CYPRESS SEMICONDUCTOR - CY8C4014SXI-421T - ARM MCU, PSOC 4 Family CY8C40xx Series Microcontrollers, ARM Cortex-M0, 32bit, 16 MHz, 16 KB, 2 KB

Download CY8C4014SXI-421T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

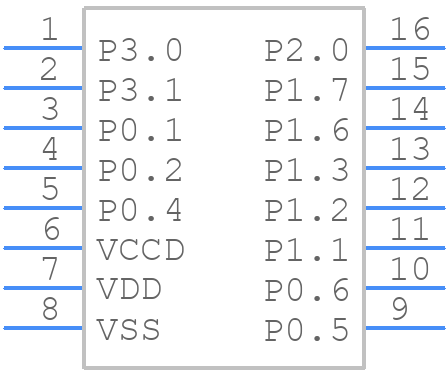

CY8C4014SXI-421T - Infineon - PCB symbol
click to zoom
PCB Footprints
CY8C4014SXI-421T - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - 16-pin SOIC (150 Mils)
click to zoom
3D Models
CY8C4014SXI-421T - Infineon - 3D model - Small Outline Packages - 16-pin SOIC (150 Mils)
click to zoom

CY8C4014SXI-421T Details

  • Manufacturer Part Number:

    CY8C4014SXI-421T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-16

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    8

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    9.893 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Seated Height-Max:

    1.727 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.71 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.8985 mm

  • uPs/uCs/Peripheral ICs Type:

    PROGRAMMABLE SoC

CY8C4014SXI-421T Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for CY8C4014SXI-421T is 1.71V to 5.5V, with a typical voltage of 3.3V.
  • The clock source for CY8C4014SXI-421T can be configured using the Clock Divider Register (CLKDIV) and the IMO (Internal Main Oscillator) or an external clock source. The IMO can be set to 3 MHz, 6 MHz, 12 MHz, 24 MHz, or 48 MHz.
  • The maximum current consumption of CY8C4014SXI-421T is approximately 20 mA at 3.3V and 24 MHz clock frequency.
  • The CY8C4014SXI-421T can be programmed using the In-System Serial Programming (ISSP) interface, which allows programming through a serial interface using a programming tool such as the Cypress Programmer or the PSoC Programmer.
  • The VREF pin on CY8C4014SXI-421T is used as a reference voltage for the analog-to-digital converter (ADC) and can be connected to an external voltage reference or left unconnected for internal reference.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CY8C4014SXI-421T Overview

Use the download button to access the CY8C4014SXI-421T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CY8C4, or try a keyword search, such as Multifunction Peripherals
