The recommended crystal oscillator frequency for the CY8C4024LQI-S401T is 32.768 kHz, which is a standard frequency for most microcontrollers.
The GPIO pins on the CY8C4024LQI-S401T can be configured as analog or digital inputs using the Pin Configuration Register (PCR). The PCR register is used to set the pin mode, drive mode, and input buffer mode.
The maximum current that can be sourced or sunk by the GPIO pins on the CY8C4024LQI-S401T is 4 mA. However, it's recommended to limit the current to 2 mA to ensure reliable operation.
The internal voltage regulator on the CY8C4024LQI-S401T can be used to power external components by connecting the VREG pin to the external component. However, the maximum current that can be drawn from the internal voltage regulator is 50 mA.
The minimum operating temperature range for the CY8C4024LQI-S401T is -40°C, and the maximum operating temperature range is 85°C.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CY8C4024LQI-S401T Overview

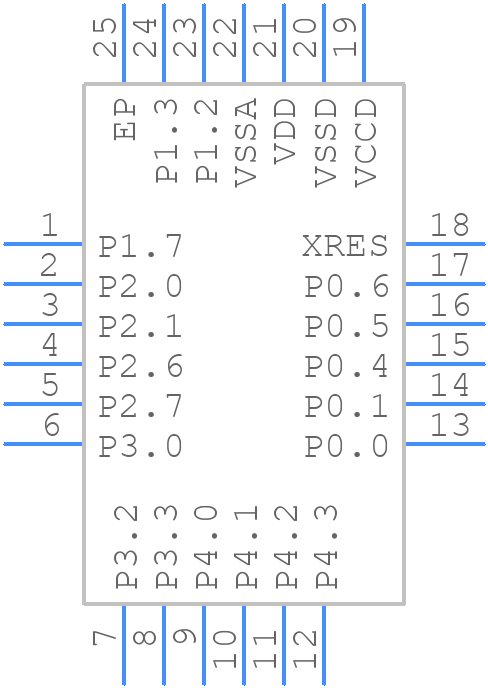

Use the download button to access the CY8C4024LQI-S401T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CY8C4,
or try a keyword search, such as Other uPs/uCs/Peripheral ICs
