CY8C4024LQI-S402 - Infineon

Description: PSoC 40xx S

Download CY8C4024LQI-S402 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

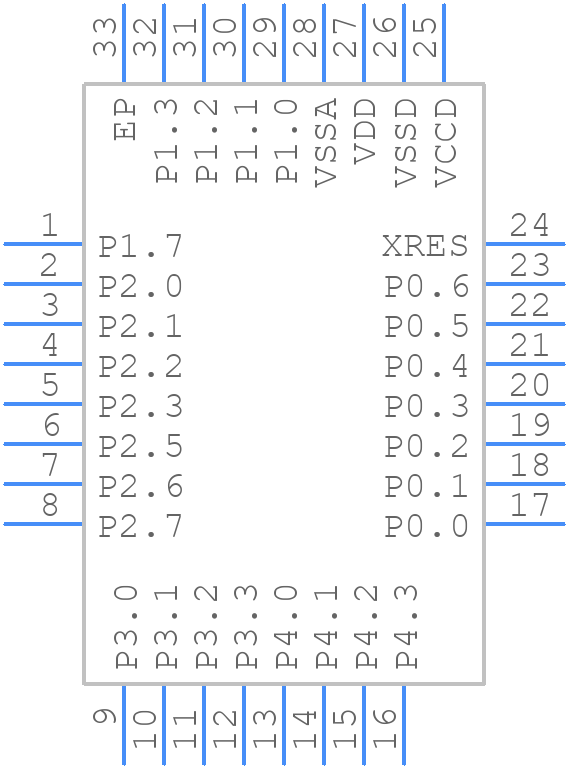

CY8C4024LQI-S402 - Infineon - PCB symbol
click to zoom
PCB Footprints
CY8C4024LQI-S402 - Infineon PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN32
click to zoom
3D Models
CY8C4024LQI-S402 - Infineon - 3D model - Quad Flat No-Lead - QFN32
click to zoom

CY8C4024LQI-S402 Details

  • Manufacturer Part Number:

    CY8C4024LQI-S402

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8542.31.00.30

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    5

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.6 mm

  • Supply Voltage-Max:

    1.89 V

  • Supply Voltage-Min:

    1.71 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Pure Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

  • uPs/uCs/Peripheral ICs Type:

    PROGRAMMABLE SoC

CY8C4024LQI-S402 Frequently Asked Questions (FAQs)

  • The recommended crystal oscillator frequency for the CY8C4024LQI-S402 is 32.768 kHz, which is a standard frequency for most microcontrollers.
  • The GPIO pins on the CY8C4024LQI-S402 can be configured as analog or digital inputs using the Pin Configuration Register (PCR). The PCR register is used to set the pin mode, drive mode, and input buffer mode for each GPIO pin.
  • The maximum current that can be sourced or sunk by the GPIO pins on the CY8C4024LQI-S402 is 4 mA. However, it's recommended to limit the current to 2 mA to ensure reliable operation.
  • The internal voltage regulator on the CY8C4024LQI-S402 can be used to power external components by connecting the VREG pin to the external component's power pin. However, the maximum current that can be drawn from the internal voltage regulator is 50 mA.
  • The minimum operating temperature range for the CY8C4024LQI-S402 is -40°C, and the maximum operating temperature range is 85°C.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CY8C4024LQI-S402 Overview

Use the download button to access the CY8C4024LQI-S402 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CY8C4, or try a keyword search, such as Other uPs/uCs/Peripheral ICs
