CY8C4025AZI-S403 - Infineon

Description: PSoC 40xx S

Download CY8C4025AZI-S403 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

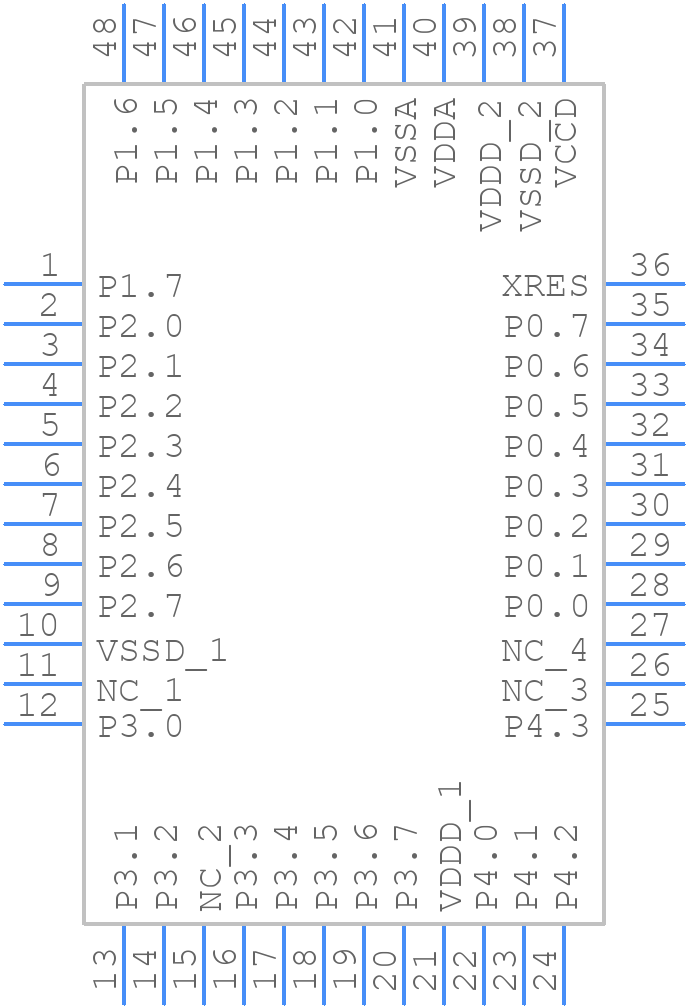

CY8C4025AZI-S403 - Infineon - PCB symbol
click to zoom
PCB Footprints
CY8C4025AZI-S403 - Infineon PCB footprint - Quad Flat Packages - Quad Flat Packages - 48 pin tqfp
click to zoom
3D Models
CY8C4025AZI-S403 - Infineon - 3D model - Quad Flat Packages - 48 pin tqfp
click to zoom

CY8C4025AZI-S403 Details

  • Manufacturer Part Number:

    CY8C4025AZI-S403

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    5

  • JESD-30 Code:

    S-PQFP-G48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFQFP

  • Package Equivalence Code:

    QFP48,.35SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE, FINE PITCH

  • Seated Height-Max:

    1.6 mm

  • Supply Voltage-Max:

    1.89 V

  • Supply Voltage-Min:

    1.71 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Pure Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    7 mm

  • uPs/uCs/Peripheral ICs Type:

    PROGRAMMABLE SoC

CY8C4025AZI-S403 Frequently Asked Questions (FAQs)

  • The recommended crystal oscillator frequency for the CY8C4025AZI-S403 is 32.768 kHz. This frequency is used as the clock source for the internal real-time clock (RTC) and watchdog timer.
  • The GPIO pins on the CY8C4025AZI-S403 can be configured as analog or digital inputs using the Pin Configuration Register (PCR). The PCR register is used to set the pin mode, drive mode, and input buffer mode for each GPIO pin.
  • The maximum current that can be sourced or sunk by the GPIO pins on the CY8C4025AZI-S403 is 25 mA. However, the total current sourced or sunk by all GPIO pins should not exceed 150 mA to ensure reliable operation.
  • The CY8C4025AZI-S403 has several low-power modes, including Sleep, Hibernate, and Deep Sleep. These modes can be entered using the Power Mode Register (PMR). The device can also be woken up from these modes using various wake-up sources, such as GPIO interrupts or timer events.
  • The CY8C4025AZI-S403 has an operating temperature range of -40°C to +85°C. However, the device can be operated at temperatures up to 105°C for short periods of time, such as during device startup or shutdown.
