CY8C4025AZI-S413T - Infineon

Description: ARM® Cortex®-M0+ PSOC™ 4 CY8C4000S Microcontroller IC 32-Bit 24MHz 32KB (32K x 8) FLASH 48-TQFP (7x7)

Download CY8C4025AZI-S413T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

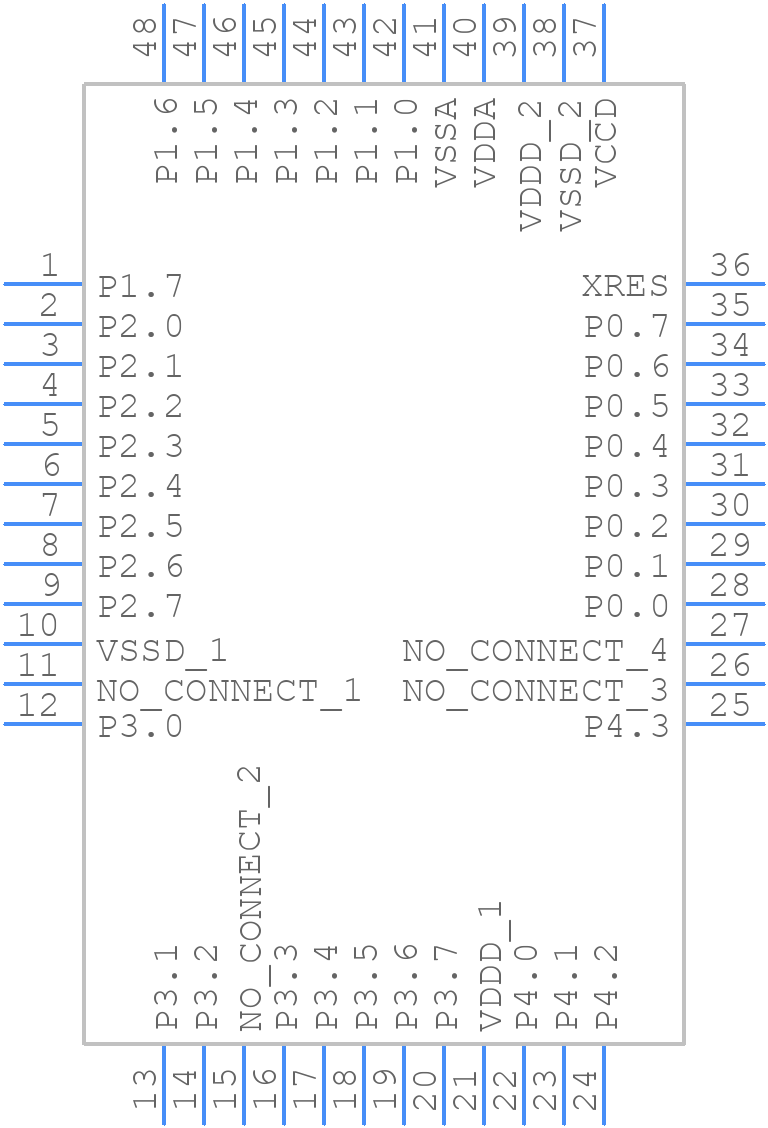

Symbol
CY8C4025AZI-S413T - Infineon - PCB symbol
click to zoom

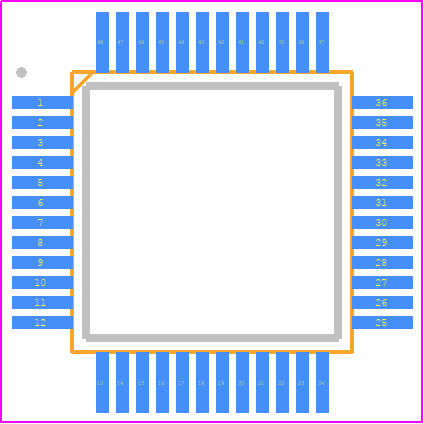

PCB Footprints
CY8C4025AZI-S413T - Infineon PCB footprint - Quad Flat Packages - Quad Flat Packages - PG-TQFP-48-800
click to zoom
3D Models
CY8C4025AZI-S413T - Infineon - 3D model - Quad Flat Packages - PG-TQFP-48-800
click to zoom

CY8C4025AZI-S413T Details

  • Manufacturer Part Number:

    CY8C4025AZI-S413T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    5

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    3

  • Terminal Finish:

    Pure Tin (Sn)

  • uPs/uCs/Peripheral ICs Type:

    PROGRAMMABLE SoC

CY8C4025AZI-S413T Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the CY8C4025AZI-S413T is 50 MHz.
  • The CY8C4025AZI-S413T has 32 KB of flash memory.
  • The operating voltage range of the CY8C4025AZI-S413T is 1.71V to 5.5V.
  • Yes, the CY8C4025AZI-S413T has a built-in USB 2.0 Full-Speed interface.
  • The maximum current consumption of the CY8C4025AZI-S413T is 20 mA at 50 MHz.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CY8C4025AZI-S413T Overview

Use the download button to access the CY8C4025AZI-S413T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CY8C4, or try a keyword search, such as Other uPs/uCs/Peripheral ICs
