The recommended crystal oscillator frequency for the CY8C4025FNI-S402T is 32.768 kHz, which is a standard frequency for most microcontrollers.
The GPIO pins on the CY8C4025FNI-S402T can be configured as analog or digital inputs using the PSoC Creator software or by writing code to set the pin's mode using the PSoC's API. The specific configuration depends on the application and the desired functionality.
The maximum current that can be sourced or sunk by the GPIO pins on the CY8C4025FNI-S402T is 25 mA. However, it's recommended to limit the current to 10 mA or less to ensure reliable operation and to prevent overheating.
The CY8C4025FNI-S402T has a built-in watchdog timer that can be enabled and configured using the PSoC Creator software or by writing code to set the watchdog timer's period and timeout using the PSoC's API.
The CY8C4025FNI-S402T has an operating temperature range of -40°C to +85°C. However, the device's performance and reliability may be affected at extreme temperatures, so it's recommended to operate within the recommended temperature range for optimal performance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CY8C4025FNI-S402T Overview

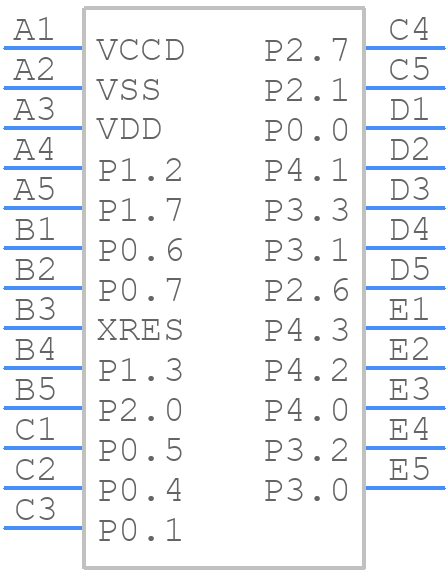

Use the download button to access the CY8C4025FNI-S402T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CY8C4,
or try a keyword search, such as Other uPs/uCs/Peripheral ICs
