CY8C4025LQI-T412 - Infineon

Description: ARM® Cortex®-M0+ PSOC™ 4000T Microcontroller IC 32-Bit 24MHz 32KB (32K x 8) FLASH 24-QFN (4x4)

Download CY8C4025LQI-T412 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

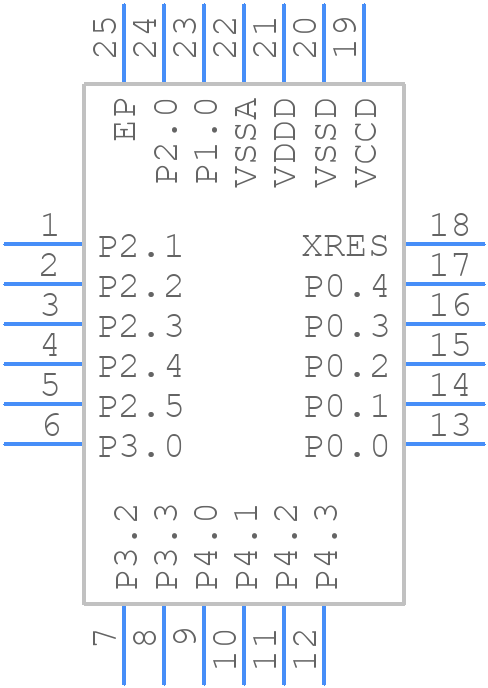

CY8C4025LQI-T412 - Infineon - PCB symbol
click to zoom
PCB Footprints
CY8C4025LQI-T412 - Infineon PCB footprint - Other - Other - PG-VQFN-24-802_2026
click to zoom
3D Models
CY8C4025LQI-T412 - Infineon - 3D model - Other - PG-VQFN-24-802_2026
click to zoom

CY8C4025LQI-T412 Details

  • Manufacturer Part Number:

    CY8C4025LQI-T412

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-24

  • Country Of Origin:

    Thailand

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    12

  • JESD-30 Code:

    S-PQCC-N24

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.6 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.71 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

  • uPs/uCs/Peripheral ICs Type:

    PROGRAMMABLE SoC

CY8C4025LQI-T412 Frequently Asked Questions (FAQs)

  • The recommended crystal oscillator frequency for the CY8C4025LQI-T412 is 32.768 kHz, which is a standard frequency for most microcontrollers.
  • The GPIO pins on the CY8C4025LQI-T412 can be configured as analog or digital inputs using the Pin Configuration Register (PCR) and the Analog Mux Register (AMUX). Refer to the device's technical reference manual for more information.
  • The maximum current that can be sourced or sunk by the GPIO pins on the CY8C4025LQI-T412 is 4 mA. However, it's recommended to limit the current to 2 mA to ensure reliable operation.
  • The CY8C4025LQI-T412 has a built-in watchdog timer that can be enabled and configured using the Watchdog Timer Control Register (WDT_CTRL). The watchdog timer can be set to timeout after a specified period of inactivity, and can be reset using the WDT_RESET register.
  • The minimum operating voltage for the CY8C4025LQI-T412 is 1.71 V, and the maximum operating voltage is 5.5 V. It's recommended to operate the device within the recommended voltage range of 1.8 V to 5.0 V for optimal performance.
