CY8C4025LQS-S411 - Infineon

Description: Stock

Download CY8C4025LQS-S411 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

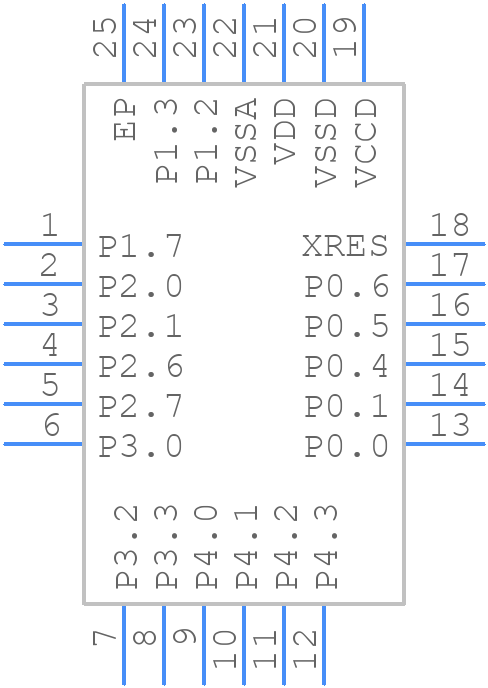

CY8C4025LQS-S411 - Infineon - PCB symbol
click to zoom
PCB Footprints
CY8C4025LQS-S411 - Infineon PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 24-pin QFN Package Outline
click to zoom
3D Models
CY8C4025LQS-S411 - Infineon - 3D model - Quad Flat No-Lead - 24-pin QFN Package Outline
click to zoom

CY8C4025LQS-S411 Details

  • Manufacturer Part Number:

    CY8C4025LQS-S411

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8542.31.00.30

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    13

  • JESD-30 Code:

    S-XQCC-N24

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.6 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.8 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

  • uPs/uCs/Peripheral ICs Type:

    PROGRAMMABLE SoC

CY8C4025LQS-S411 Frequently Asked Questions (FAQs)

  • The recommended crystal oscillator frequency for the CY8C4025LQS-S411 is 32.768 kHz. This frequency is used as the clock source for the internal real-time clock (RTC) and watchdog timer.
  • The GPIO pins on the CY8C4025LQS-S411 can be configured as analog or digital inputs using the Pin Configuration Register (PCR). The PCR register is used to set the pin mode, drive mode, and input buffer mode for each GPIO pin.
  • The maximum current that can be sourced or sunk by the GPIO pins on the CY8C4025LQS-S411 is 4 mA. However, it's recommended to limit the current to 2 mA to ensure reliable operation and to prevent overheating.
  • The internal voltage regulator on the CY8C4025LQS-S411 can be used to power external components by connecting the VREG pin to the external component's power pin. The internal voltage regulator is enabled by setting the VREG_EN bit in the System Control Register (SCR).
  • The VBAT pin on the CY8C4025LQS-S411 is used to connect a battery or a supercapacitor to provide power to the internal real-time clock (RTC) and other components during power-down modes. The VBAT pin should be connected to a battery or a supercapacitor with a voltage range of 1.8 V to 3.6 V.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CY8C4025LQS-S411 Overview

Use the download button to access the CY8C4025LQS-S411 schematic symbol, PCB footprint, and 3D model.
